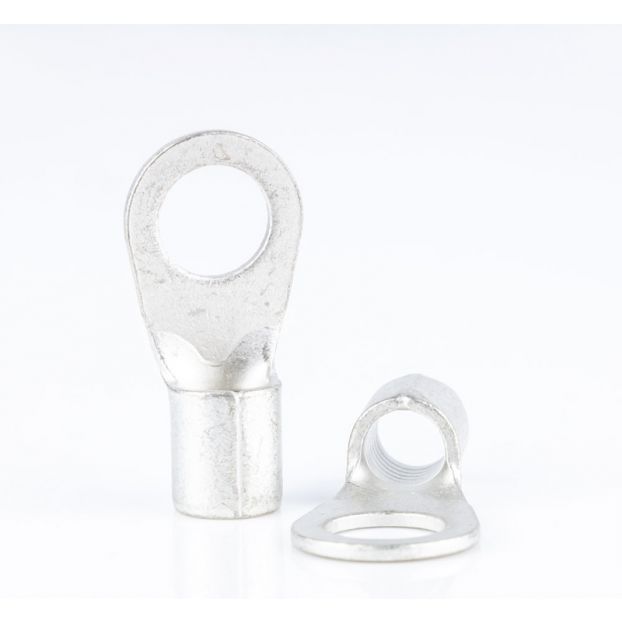

WKK - Terminals in accordance with DIN 46234 - Uninsulated - 10mm - 10mm² - 100 pieces
€ 36.40 Excl. VAT
Stock (pcs.): Backorder
These terminals, are used to maken a solid connection of your cables, and are, for example, often pressed on battery cables. With soldered seam. In accordance with DIN 46234. With ring shape. Available in a wide range of versions.
| Art.no. | 41321013671 |
|---|---|
| Brand | WKK |
| Crimp terminal type | Terminals in accordance with DIN 46234 |
| Connector material | Copper |
| Wire range (mm²) | 10 |
| Hole diameter (mm) | 10 |
| AWG | 8 |
| A (mm) | 8 |
| B (mm) | 18 |
| D (mm) | 6.7 |
| X (mm) | 4.5 |
| L (mm) | 21 |
| Approvals | DIN 46234 |
| For crimp terminal type | Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234 |
| PU (pcs.) | 100 |
