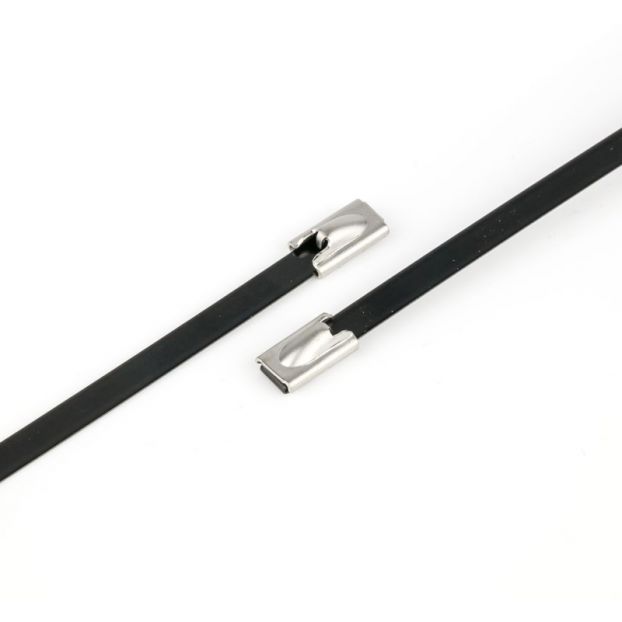

WKK - Stainless steel cable ties - Coated - AISI 304

Coated AISI 304 stainless steel cable ties are the ideal cable ties for 'heavy duty' applications. They can be used when a tensile strength of more than 114 kg is required and are resistant to extreme temperatures, of up to +538 °C. The coating on the stainless steel cable tie ensures optimal protection of the cable. This coated AISI 304 stainless steel cable tie is available in 7 lengths.

View versions and order

Downloads

Flowchart - Selecting the correct cable tie type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Length (mm)

Width (mm)

Grouped product items
Art.no.	Length (mm)	Width (mm)	Max. bundle diameter (mm)	Tensile strength (kg)	PU (pcs.)	PU / Master Carton	Price excl. VAT	Stock (pcs.)
1905571	125	4.6	38	90	100	50	Request a quote	59
19012571	200	4.6	61.9	90	100	50	Request a quote	13
19012771	200	7.9	61.9	160	100	25	Request a quote	33
19018571	290	4.6	90.6	90	100	50	Request a quote	26
19018771	290	7.9	90.6	160	100	25	Request a quote	64
19021571	360	4.6	112.8	90	100	25	Request a quote	88
19021771	360	7.9	112.8	160	100	25	Request a quote	169
19028571	520	4.6	163.8	90	100	20	Request a quote	Backorder
19028771	520	7.9	163.8	160	100	10	Request a quote	7
19033571	680	4.6	214.8	90	100	25	Request a quote	Backorder
19033771	680	7.9	214.8	160	100	10	Request a quote	Backorder
19039571	840	4.6	265.7	90	100	25	Request a quote	Backorder
19039771	840	7.9	265.7	160	100	10	Request a quote	Backorder

More Information
Color	Black (UV resistant)
Brand	WKK
Material	Stainless steel
Cable tie type	Coated - AISI 304
Type of cable tie closure	Ball-lock stainless steel closure
Material quality	AISI 304 (with polyester coating)
Operating temperature (°C)	-40 up to +150
Flammability class	Not flammable
Halogen-free	Yes
Silicone-free	Yes
Approvals	DNV-GL, UL, Reach, RoHS, CE
PU (pcs.)	100
