WKK - Spade terminals - Insulated

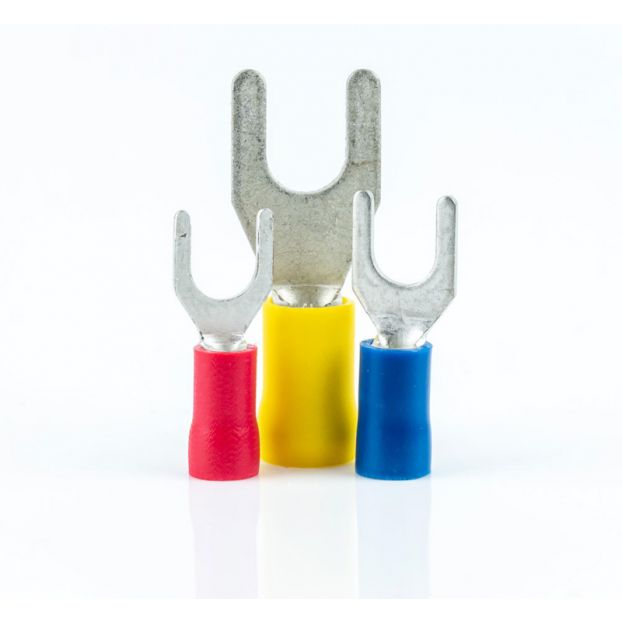

Spade terminals for safely attaching cable to electrical devices and junction boxes. Without sleeve and available with 'easy entry'. Insulated. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

With sleeve

Wire range (mm²)

Groove (mm)

AWG

Length (mm)

Grouped product items
Art.no.	With sleeve	Insulation color	Wire range (mm²)	Groove (mm)	AWG	Length (mm)	PU (pcs.)	Price excl. VAT	Stock (pcs.)
421321271	Yes	Red	0.5 ~ 1.5	3.2	22 ~ 16	21	100	Call for price	1
421331271	Yes	Red	0.5 ~ 1.5	3.7	22 ~ 16	20.6	100	Call for price	4
421351271	Yes	Red	0.5 ~ 1.5	4.3	22 ~ 16	20.6	100	Call for price	35
421371271	Yes	Red	0.5 ~ 1.5	5.3	22 ~ 16	21	100	Call for price	19
421391271	Yes	Red	0.5 ~ 1.5	6.5	22 ~ 16	27.2	100	Call for price	3
421432671	Yes	Blue	1.5 ~ 2.5	3.7	16 ~ 14	21	100	Call for price	11
421452671	Yes	Blue	1.5 ~ 2.5	4.3	16 ~ 14	21	100	Call for price	52
421472671	Yes	Blue	1.5 ~ 2.5	5.3	16 ~ 14	22	100	Call for price	16
421492671	Yes	Blue	1.5 ~ 2.5	6.5	16 ~ 14	27.2	100	Call for price	8
421633471	Yes	Yellow	4.0 ~ 6.0	3.7	12 ~ 10	25.2	100	Call for price	2
421653471	Yes	Yellow	4.0 ~ 6.0	4.3	12 ~ 10	25.2	100	Call for price	7
421673471	Yes	Yellow	4.0 ~ 6.0	5.3	12 ~ 10	25.2	100	Call for price	10
421693471	Yes	Yellow	4.0 ~ 6.0	6.5	12 ~ 10	31.2	100	Call for price	Backorder
422321271	No	Red	0.5 ~ 1.5	3.2	22 ~ 16	21	100	Call for price	Backorder
422331271	No	Red	0.5 ~ 1.5	3.7	22 ~ 16	20.6	100	Call for price	1
422351271	No	Red	0.5 ~ 1.5	4.3	22 ~ 16	20.6	100	Call for price	2
422371271	No	Red	0.5 ~ 1.5	5.3	22 ~ 16	21	100	Call for price	7
422391271	No	Red	0.5 ~ 1.5	6.5	22 ~ 16	27.2	100	Call for price	Backorder
422432671	No	Blue	1.5 ~ 2.5	3.7	16 ~ 14	21	100	Call for price	Backorder
422452671	No	Blue	1.5 ~ 2.5	4.3	16 ~ 14	21	100	Call for price	17
422472671	No	Blue	1.5 ~ 2.5	5.3	16 ~ 14	22	100	Call for price	61
422492671	No	Blue	1.5 ~ 2.5	6.5	16 ~ 14	27.2	100	Call for price	6
422633471	No	Yellow	4.0 ~ 6.0	3.7	12 ~ 10	25.2	100	Call for price	Backorder
422653471	No	Yellow	4.0 ~ 6.0	4.3	12 ~ 10	25.2	100	Call for price	25
422673471	No	Yellow	4.0 ~ 6.0	5.3	12 ~ 10	25.2	100	Call for price	21
422693471	No	Yellow	4.0 ~ 6.0	6.5	12 ~ 10	31.2	100	Call for price	6

More Information
Brand	WKK
Crimp terminal type	Spade terminals
Maximum electrical voltage	600 V max.
Maximum temperature (°C)	75
Insulation material	PVC
Connector material	Copper
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
