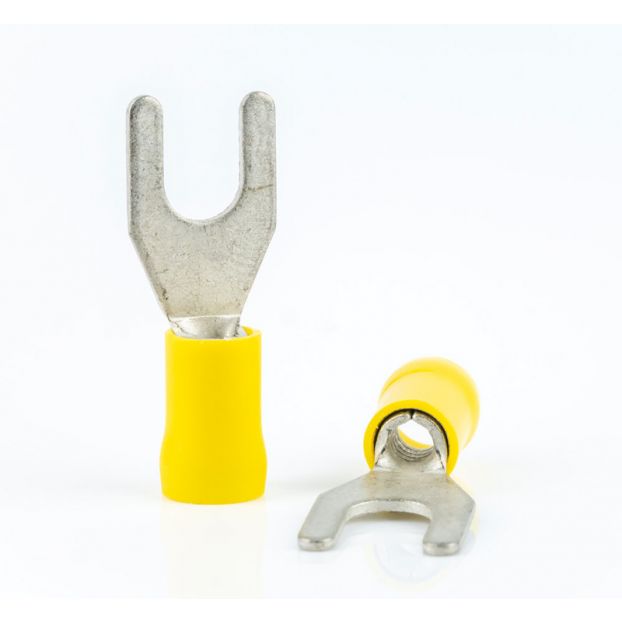

WKK - Spade terminals - Insulated - 5,3mm - Yellow - Without sleeve - 100 pieces
€ 17.95 Excl. VAT
Stock (pcs.): 21
Spade terminals for safely attaching cable to electrical devices and junction boxes. Without sleeve and available with 'easy entry'. Insulated. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.
| Art.no. | 422673471 |
|---|---|
| Brand | WKK |
| Crimp terminal type | Spade terminals |
| Maximum electrical voltage | 600 V max. |
| Maximum temperature (°C) | 75 |
| Insulation material | PVC |
| Connector material | Copper |
| With sleeve | No |
| Insulation color | Yellow |
| Wire range (mm²) | 4.0 ~ 6.0 |
| Groove (mm) | 5.3 |
| AWG | 12 ~ 10 |
| Length (mm) | 25.2 |
| For crimp terminal type | Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234 |
| PU (pcs.) | 100 |
