WKK - Spade connector - Insulated - Female

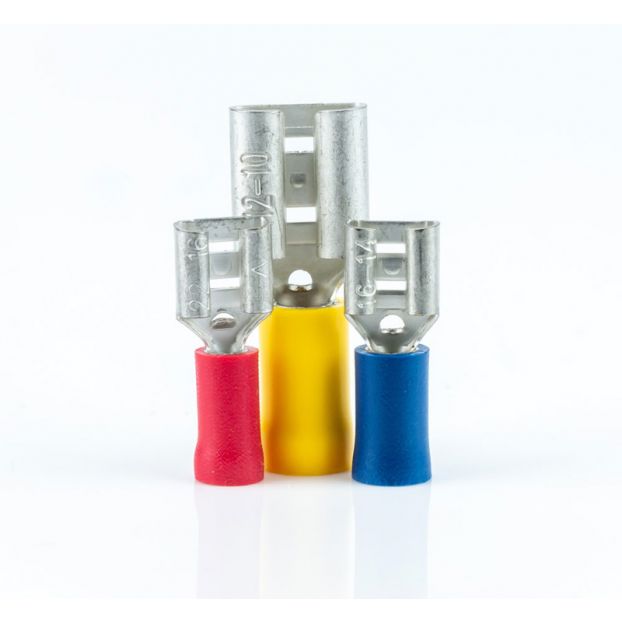

Insulated spade connector, female. Insulated spade connectors consist of an open connector (copper or brass) and an insulating PVC sleeve. Without sleeve and also available with 'easy entry'. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

With sleeve

Wire range (mm²)

Tab (mm)

AWG

Grouped product items
Art.no.	With sleeve	Insulation color	Wire range (mm²)	Tab (mm)	AWG	PU (pcs.)	Price excl. VAT	Stock (pcs.)
4313271271	Yes	Red	0.5 ~ 1.5	*0.5 2.8**	22 ~ 16	100	Call for price	15
4313281271	Yes	Red	0.5 ~ 1.5	*0.8 2..8**	22 ~ 16	100	Call for price	35
4313291271	Yes	Red	0.5 ~ 1.5	*0.5 4.8**	22 ~ 16	100	Call for price	6
4313301271	Yes	Red	0.5 ~ 1.5	*0.8 4.8**	22 ~ 16	100	Call for price	10
4313311271	Yes	Red	0.5 ~ 1.5	*0.8 6.4**	22 ~ 16	100	Call for price	23
4314272671	Yes	Blue	1.5 ~ 2.5	*0.5 2.8**	16 ~ 14	100	Call for price	Backorder
4314282671	Yes	Blue	1.5 ~ 2.5	*0.8 2..8**	16 ~ 14	100	Call for price	Backorder
4314292671	Yes	Blue	1.5 ~ 2.5	*0.5 4.8**	16 ~ 14	100	Call for price	20
4314302671	Yes	Blue	1.5 ~ 2.5	*0.8 4.8**	16 ~ 14	100	Call for price	7
4314312671	Yes	Blue	1.5 ~ 2.5	*0.8 6.4**	16 ~ 14	100	Call for price	1
4316323471	Yes	Yellow	4.0 ~ 6.0	*0.8 6.8**	12 ~ 10	100	Call for price	3
4323271271	No	Red	0.5 ~ 1.5	*0.5 2.8**	22 ~ 16	100	Call for price	Backorder
4323281271	No	Red	0.5 ~ 1.5	*0.8 2..8**	22 ~ 16	100	Call for price	37
4323291271	No	Red	0.5 ~ 1.5	*0.5 4.8**	22 ~ 16	100	Call for price	2
4323301271	No	Red	0.5 ~ 1.5	*0.8 4.8**	22 ~ 16	100	Call for price	2
4323311271	No	Red	0.5 ~ 1.5	*0.8 6.4**	22 ~ 16	100	Call for price	Backorder
4324272671	No	Blue	1.5 ~ 2.5	*0.5 2.8**	16 ~ 14	100	Call for price	Backorder
4324282671	No	Blue	1.5 ~ 2.5	*0.8 2..8**	16 ~ 14	100	Call for price	Backorder
4324292671	No	Blue	1.5 ~ 2.5	*0.5 4.8**	16 ~ 14	100	Call for price	2
4324302671	No	Blue	1.5 ~ 2.5	*0.8 4.8**	16 ~ 14	100	Call for price	Backorder
4324312671	No	Blue	1.5 ~ 2.5	*0.8 6.4**	16 ~ 14	100	Call for price	Backorder
4326323471	No	Yellow	4.0 ~ 6.0	*0.8 6.8**	12 ~ 10	100	Call for price	285

More Information
Brand	WKK
Crimp terminal type	Spade connectors
Maximum electrical voltage	300 V max.
Maximum temperature (°C)	75
Insulation material	PVC
Connector material	Brass
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
