WKK - Spade connector - Fully Insulated - Female

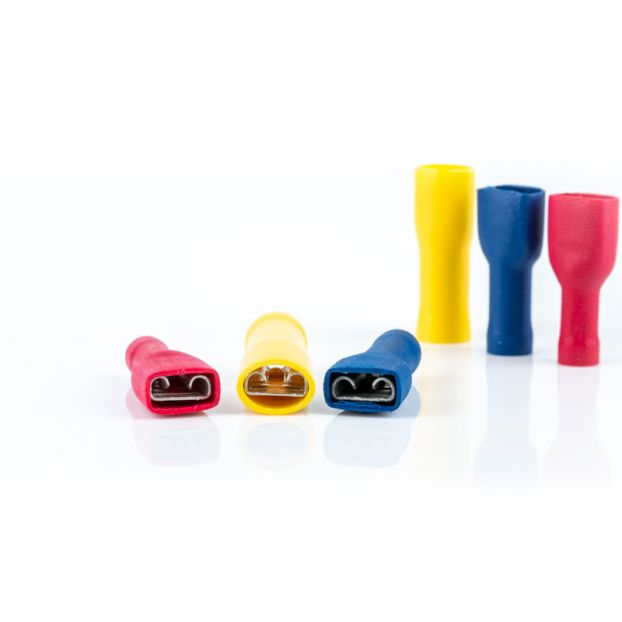

Fully insulated spade connector, female. With fully insulated spade connectors, you choose the highest safety for your cables and devices. Without sleeve and also available with 'easy entry'. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

With sleeve

Wire range (mm²)

Tab (mm)

AWG

Grouped product items
Art.no.	With sleeve	Insulation color	Wire range (mm²)	Tab (mm)	AWG	PU (pcs.)	Price excl. VAT	Stock (pcs.)
4413271271	Yes	Red	0.5 ~ 1.5	*0.5 2.8**	22 ~ 16	100	Request a quote	Backorder
4413281271	Yes	Red	0.5 ~ 1.5	*0.8 2..8**	22 ~ 16	100	Request a quote	8
4413291271	Yes	Red	0.5 ~ 1.5	*0.5 4.8**	22 ~ 16	100	Request a quote	Backorder
4413301271	Yes	Red	0.5 ~ 1.5	*0.8 4.8**	22 ~ 16	100	Request a quote	64
4413311271	Yes	Red	0.5 ~ 1.5	*0.8 6.4**	22 ~ 16	100	Request a quote	215
4414272671	Yes	Blue	1.5 ~ 2.5	*0.5 2.8**	16 ~ 14	100	Request a quote	2
4414282671	Yes	Blue	1.5 ~ 2.5	*0.8 2..8**	16 ~ 14	100	Request a quote	Backorder
4414292671	Yes	Blue	1.5 ~ 2.5	*0.5 4.8**	16 ~ 14	100	Request a quote	6
4414302671	Yes	Blue	1.5 ~ 2.5	*0.8 4.8**	16 ~ 14	100	Request a quote	9
4414312671	Yes	Blue	1.5 ~ 2.5	*0.8 6.4**	16 ~ 14	100	Request a quote	80
4416323471	Yes	Yellow	4.0 ~ 6.0	*0.8 6.8**	12 ~ 10	100	Request a quote	28
4423271271	No	Red	0.5 ~ 1.5	*0.5 2.8**	22 ~ 16	100	Request a quote	Backorder
4423281271	No	Red	0.5 ~ 1.5	*0.8 2..8**	22 ~ 16	100	Request a quote	Backorder
4423291271	No	Red	0.5 ~ 1.5	*0.5 4.8**	22 ~ 16	100	Request a quote	99
4423301271	No	Red	0.5 ~ 1.5	*0.8 4.8**	22 ~ 16	100	Request a quote	2
4423311271	No	Red	0.5 ~ 1.5	*0.8 6.4**	22 ~ 16	100	Request a quote	38
4424272671	No	Blue	1.5 ~ 2.5	*0.5 2.8**	16 ~ 14	100	Request a quote	Backorder
4424282671	No	Blue	1.5 ~ 2.5	*0.8 2..8**	16 ~ 14	100	Request a quote	Backorder
4424292671	No	Blue	1.5 ~ 2.5	*0.5 4.8**	16 ~ 14	100	Request a quote	2
4424302671	No	Blue	1.5 ~ 2.5	*0.8 4.8**	16 ~ 14	100	Request a quote	4
4424312671	No	Blue	1.5 ~ 2.5	*0.8 6.4**	16 ~ 14	100	Request a quote	31
4426323471	No	Yellow	4.0 ~ 6.0	*0.8 6.8**	12 ~ 10	100	Request a quote	19

More Information
Brand	WKK
Crimp terminal type	Spade connectors
Maximum electrical voltage	300 V max.
Maximum temperature (°C)	75
Insulation material	PVC
Connector material	Brass
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
