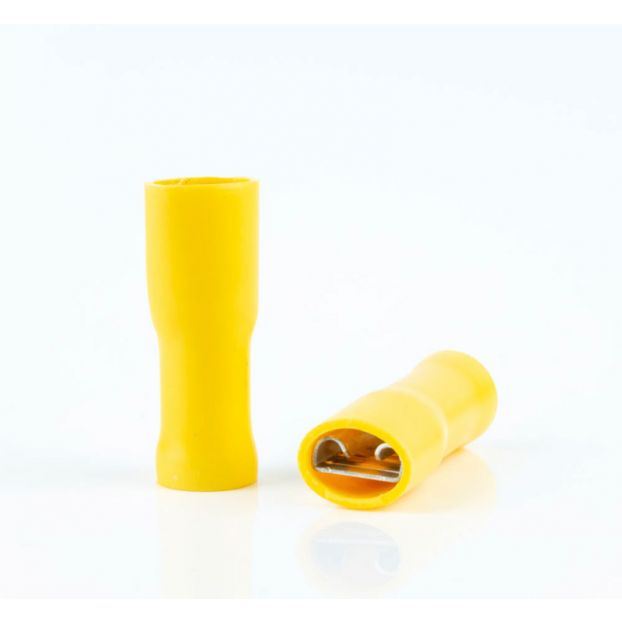

WKK - Spade connector - Fully Insulated - Female - 0,8 * 6,8mm - Yellow - Without sleeve - 100 pieces
€ 13.87 Excl. VAT
Stock (pcs.): 20
Fully insulated spade connector, female. With fully insulated spade connectors, you choose the highest safety for your cables and devices. Without sleeve and also available with 'easy entry'. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.
| Art.no. | 4426323471 |
|---|---|
| Brand | WKK |
| Crimp terminal type | Spade connectors |
| Maximum electrical voltage | 300 V max. |
| Maximum temperature (°C) | 75 |
| Insulation material | PVC |
| Connector material | Brass |
| With sleeve | No |
| Insulation color | Yellow |
| Wire range (mm²) | 4.0 ~ 6.0 |
| Tab (mm) | 0.8 * 6.8 |
| AWG | 12 ~ 10 |
| For crimp terminal type | Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234 |
| PU (pcs.) | 100 |
