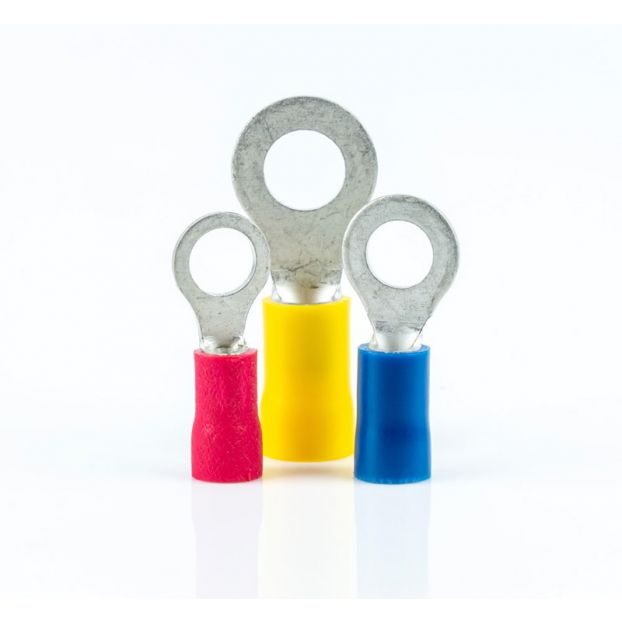

WKK - Ring terminals - Insulated

Ring terminals are used to safely attach cables to for example electrical devices or junction boxes. Without sleeve. Also available with 'easy entry'. Insulated. In three colors, each of which corresponds with a size: Red: cablecore of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

With sleeve

Wire range (mm²)

Hole diameter (mm)

AWG

Length (mm)

Grouped product items
Art.no.	With sleeve	Insulation color	Wire range (mm²)	Hole diameter (mm)	AWG	Length (mm)	PU (pcs.)	Price excl. VAT	Stock (pcs.)
411321271	Yes	Red	0.5 ~ 1.5	3.2	22 ~ 16	18	100	Request a quote	5
411331271	Yes	Red	0.5 ~ 1.5	3.7	22 ~ 16	19.9	100	Request a quote	15
411351271	Yes	Red	0.5 ~ 1.5	4.3	22 ~ 16	19.9	100	Request a quote	111
411371271	Yes	Red	0.5 ~ 1.5	5.3	22 ~ 16	21.3	100	Request a quote	21
411391271	Yes	Red	0.5 ~ 1.5	6.4	22 ~ 16	27.3	100	Request a quote	28
4113121271	Yes	Red	0.5 ~ 1.5	8.4	22 ~ 16	27.3	100	Request a quote	14
4113141271	Yes	Red	0.5 ~ 1.5	10.5	22 ~ 16	31	100	Request a quote	1
411432671	Yes	Blue	1.5 ~ 2.5	3.7	16 ~ 14	19.9	100	Request a quote	5
411452671	Yes	Blue	1.5 ~ 2.5	4.3	16 ~ 14	22.3	100	Request a quote	90
411472671	Yes	Blue	1.5 ~ 2.5	5.3	16 ~ 14	22.3	100	Request a quote	40
411492671	Yes	Blue	1.5 ~ 2.5	6.4	16 ~ 14	27.3	100	Request a quote	49
4114122671	Yes	Blue	1.5 ~ 2.5	8.4	16 ~ 14	27.3	100	Request a quote	4
4114142671	Yes	Blue	1.5 ~ 2.5	10.5	16 ~ 14	31	100	Request a quote	32
411633471	Yes	Yellow	4.0 ~ 6.0	3.7	12 ~ 10	23.2	100	Request a quote	Backorder
411653471	Yes	Yellow	4.0 ~ 6.0	4.3	12 ~ 10	27.1	100	Request a quote	16
411673471	Yes	Yellow	4.0 ~ 6.0	5.3	12 ~ 10	27.1	100	Request a quote	13
411693471	Yes	Yellow	4.0 ~ 6.0	6.4	12 ~ 10	30	100	Request a quote	45
4116123471	Yes	Yellow	4.0 ~ 6.0	8.4	12 ~ 10	34.5	100	Request a quote	53
4116143471	Yes	Yellow	4.0 ~ 6.0	10.5	12 ~ 10	34.5	100	Request a quote	16
412321271	No	Red	0.5 ~ 1.5	3.2	22 ~ 16	18	100	Request a quote	10
412331271	No	Red	0.5 ~ 1.5	3.7	22 ~ 16	19.9	100	Request a quote	Backorder
412351271	No	Red	0.5 ~ 1.5	4.3	22 ~ 16	19.9	100	Request a quote	46
412371271	No	Red	0.5 ~ 1.5	5.3	22 ~ 16	21.3	100	Request a quote	37
412391271	No	Red	0.5 ~ 1.5	6.4	22 ~ 16	27.3	100	Request a quote	48
4123121271	No	Red	0.5 ~ 1.5	8.4	22 ~ 16	27.3	100	Request a quote	2
4123141271	No	Red	0.5 ~ 1.5	10.5	22 ~ 16	31	100	Request a quote	1
412432671	No	Blue	1.5 ~ 2.5	3.7	16 ~ 14	19.9	100	Request a quote	272
412452671	No	Blue	1.5 ~ 2.5	4.3	16 ~ 14	22.3	100	Request a quote	29
412472671	No	Blue	1.5 ~ 2.5	5.3	16 ~ 14	22.3	100	Request a quote	45
412492671	No	Blue	1.5 ~ 2.5	6.4	16 ~ 14	27.3	100	Request a quote	19
4124122671	No	Blue	1.5 ~ 2.5	8.4	16 ~ 14	27.3	100	Request a quote	22
4124142671	No	Blue	1.5 ~ 2.5	10.5	16 ~ 14	31	100	Request a quote	3
412633471	No	Yellow	4.0 ~ 6.0	3.7	12 ~ 10	23.2	100	Request a quote	Backorder
412653471	No	Yellow	4.0 ~ 6.0	4.3	12 ~ 10	27.1	100	Request a quote	12
412673471	No	Yellow	4.0 ~ 6.0	5.3	12 ~ 10	27.1	100	Request a quote	26
412693471	No	Yellow	4.0 ~ 6.0	6.4	12 ~ 10	30	100	Request a quote	25
4126123471	No	Yellow	4.0 ~ 6.0	8.4	12 ~ 10	34.5	100	Request a quote	55
4126143471	No	Yellow	4.0 ~ 6.0	10.5	12 ~ 10	34.5	100	Request a quote	4

More Information
Brand	WKK
Crimp terminal type	Ring terminals
Maximum electrical voltage	600 V max.
Maximum temperature (°C)	75
Insulation material	PVC
Connector material	Copper
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
