WKK - Quick splice connectors

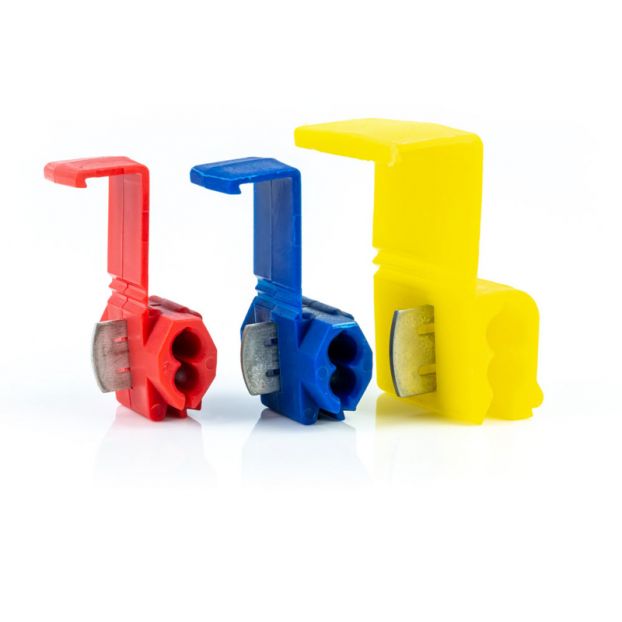

A quick splice connector enables you to connect multiple pieces of wire, on existing wires. The cable does not need to be stripped when using a quick splice connector. Installation is easy and requires no soldering. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Wire range (mm²)

AWG

Length (mm)

Grouped product items
Art.no.	Insulation color	Wire range (mm²)	AWG	Length (mm)	PU (pcs.)	PU / Master Carton	Price excl. VAT	Stock (pcs.)
41573201271	Red	0.5 ~ 1.5	22 ~ 16	26	100	100	Call for price	508
41576223471	Yellow	4.0 ~ 6.0	12 ~ 10	32.8	100		Call for price	11
41574202671	Blue	1.5 ~ 2.5	16 ~ 14	26	100		Call for price	43

More Information
Brand	WKK
Crimp terminal type	Quick splice connectors
Maximum electrical voltage	600 V max.
Maximum temperature (°C)	105
Insulation material	Nylon
Connector material	Brass
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
