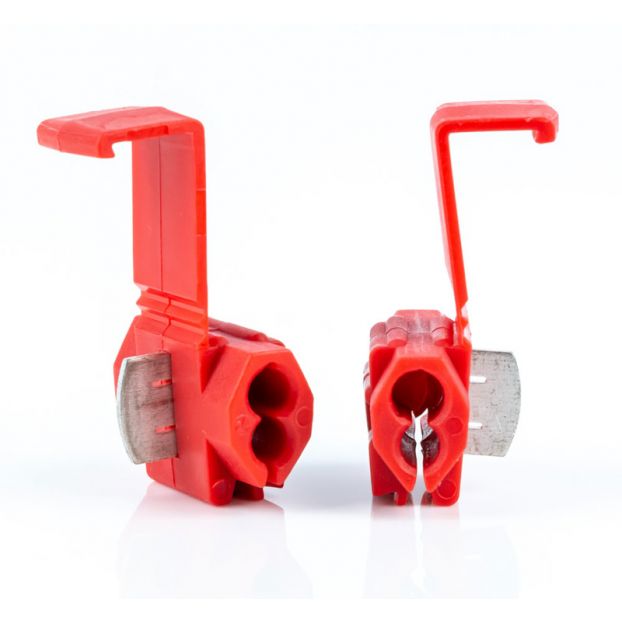

WKK - Quick splice connectors - 1,5mm² - Red - 100 pieces
Stock (pcs.): 495
A quick splice connector enables you to connect multiple pieces of wire, on existing wires. The cable does not need to be stripped when using a quick splice connector. Installation is easy and requires no soldering. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.
| Art.no. | 41573201271 |
|---|---|
| Brand | WKK |
| Crimp terminal type | Quick splice connectors |
| Maximum electrical voltage | 600 V max. |
| Maximum temperature (°C) | 105 |
| Insulation material | Nylon |
| Connector material | Brass |
| Insulation color | Red |
| Wire range (mm²) | 0.5 ~ 1.5 |
| AWG | 22 ~ 16 |
| Length (mm) | 26 |
| For crimp terminal type | Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234 |
| PU (pcs.) | 100 |
| PU / Master Carton | 100 |
