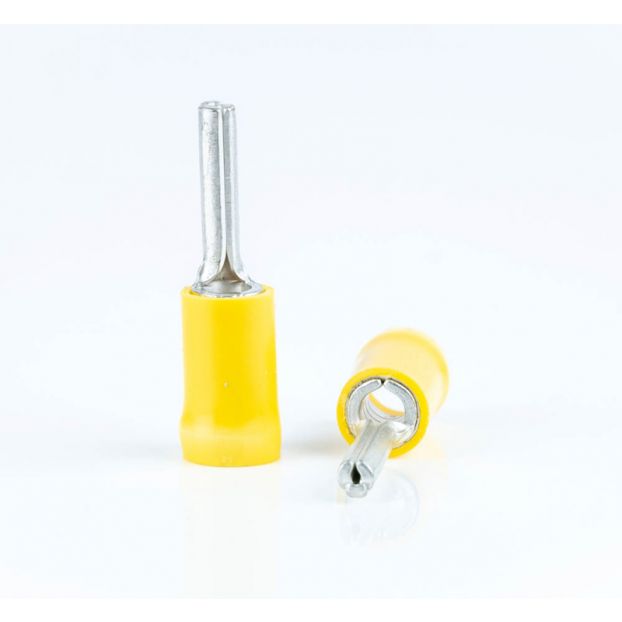

WKK - Pin terminals - Insulated - 26,2mm - Yellow - Without sleeve - 100 pieces
€ 23.39 Excl. VAT
Stock (pcs.): 19
Pin terminals are used to safely attach cables to electrical devices or junction boxes. Also available without sleeve and with 'easy entry'. Insulated. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.
| Art.no. | 41226213471 |
|---|---|
| Brand | WKK |
| Crimp terminal type | Pin terminals |
| Maximum electrical voltage | 600 V max. |
| Maximum temperature (°C) | 75 |
| Insulation material | PVC |
| Connector material | Copper |
| With sleeve | No |
| Insulation color | Yellow |
| Wire range (mm²) | 4.0 ~ 6.0 |
| AWG | 12 ~ 10 |
| Length (mm) | 26.2 |
| For crimp terminal type | Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234 |
| PU (pcs.) | 100 |
