WKK - Piggyback connector - Insulated - Female

Request a quote

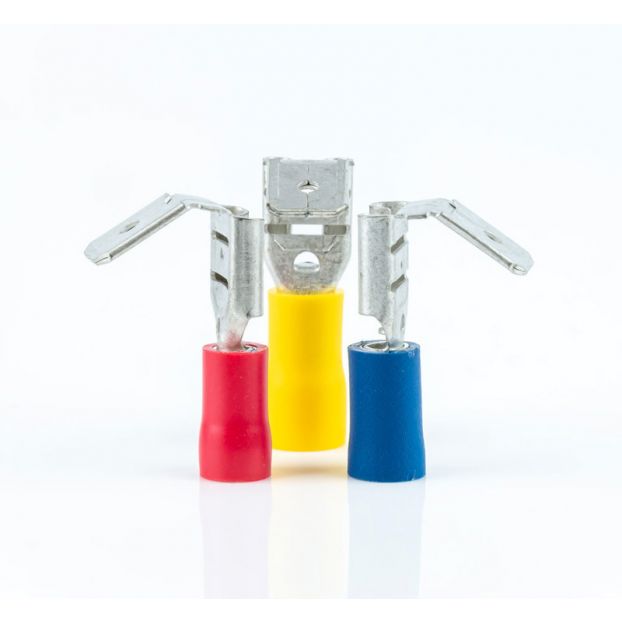

Insulated piggyback connector. Without sleeve and also available with 'easy entry'. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.
View versions and order
main product photo

Versions

Grouped product items
Quantity Art.no. With sleeve Insulation color Wire range (mm²) Tab (mm) AWG PU (pcs.) PU / Master Carton Price excl. VAT Stock (pcs.)
4513311271 Yes Red 0.5 ~ 1.5 0.8 * 6.4 22 ~ 16 100
Request a quote 		25
4514312671 Yes Blue 1.5 ~ 2.5 0.8 * 6.4 16 ~ 14 100
Request a quote 		42
4516313471 Yes Yellow 4.0 ~ 6.0 0.8 * 6.4 12 ~ 10 100
Request a quote 		5
4523311271 No Red 0.5 ~ 1.5 0.8 * 6.4 22 ~ 16 100
Request a quote 		Backorder
4524312671 No Blue 1.5 ~ 2.5 0.8 * 6.4 16 ~ 14 100
Request a quote 		Backorder
4526313471 No Yellow 4.0 ~ 6.0 0.8 * 6.4 12 ~ 10 100
Request a quote 		19
More Information
Brand WKK
Crimp terminal type Spade connectors
Maximum electrical voltage 300 V max.
Maximum temperature (°C) 75
Insulation material PVC
Connector material Brass
For crimp terminal type Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
