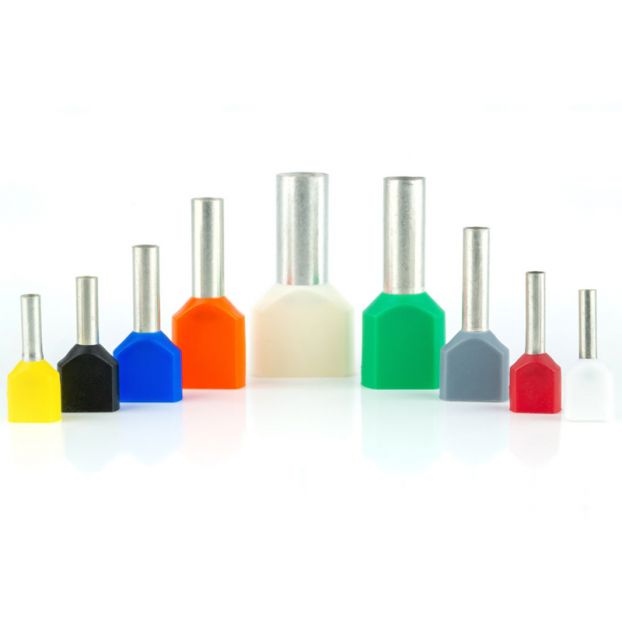

WKK - Insulated bootlace ferrules - TWIN

Double bootlace ferrule, also called 'Twin'. A bootlace ferrule is used to create an optimal electrical contact between copper wires in the core of cables and the mounting clip. All of our bootlace ferrules meet the DIN 46228/1 standardization.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Mm²

AWG

L1 (mm)

L2 (mm)

Color

Grouped product items
Art.no.	Mm²	AWG	L1 (mm)	L2 (mm)	D1 (mm)	D2 (mm)	S1 (mm)	Color	PU (pcs.)	Price excl. VAT	Stock (pcs.)
53543101	0.5	2 x 20	15	8	1.4	2.5	0.15	Orange	500	Request a quote	13
53549101	0.5	2 x 20	15	8	1.4	2.5	0.15	White	500	Request a quote	15
53646101	0.75	2 x 18	15	8	1.7	2.8	0.15	Blue	500	Request a quote	40
53648101	0.75	2 x 18	15	8	1.7	2.8	0.15	Grey	500	Request a quote	74
53649101	0.75	2 x 18	15	8	1.7	2.8	0.15	White	500	Request a quote	41
53666101	0.75	2 x 18	17	10	1.7	2.8	0.15	Blue	500	Request a quote	1
53668101	0.75	2 x 18	17	10	1.7	2.8	0.15	Grey	500	Request a quote	21
53669101	0.75	2 x 18	17	10	1.7	2.8	0.15	White	500	Request a quote	32
53744101	1	2 x 18	15	8	1.95	3.4	0.15	Yellow	500	Request a quote	22
53742101	1	2 x 18	15	8	1.95	3.4	0.15	Red	500	Request a quote	59
53764101	1	2 x 18	17	10	1.95	3.4	0.15	Yellow	500	Request a quote	Backorder
53762101	1	2 x 18	17	10	1.95	3.4	0.15	Red	500	Request a quote	10
53840101	1.5	2 x 16	16	8	2.2	3.6	0.15	Black	500	Request a quote	119
53842101	1.5	2 x 16	16	8	2.2	3.6	0.15	Red	500	Request a quote	2
5396691	2.5	2 x 14	18.5	10	2.8	4.2	0.2	Blue	250	Request a quote	38
5396891	2.5	2 x 14	18.5	10	2.8	4.2	0.2	Grey	250	Request a quote	39
5398691	2.5	2 x 14	21.5	13	2.8	4.2	0.2	Blue	250	Request a quote	Backorder
5398891	2.5	2 x 14	21.5	13	2.8	4.2	0.2	Grey	250	Request a quote	Backorder
53107871	4	2 x 12	23	12	3.7	4.9	0.2	Grey	100	Request a quote	100
53107371	4	2 x 12	23	12	3.7	4.9	0.2	Orange	100	Request a quote	5
53119471	6	2 x 10	26	14	4.8	6.9	0.2	Yellow	100	Request a quote	151
53119571	6	2 x 10	26	14	4.8	6.9	0.2	Green	100	Request a quote	55
53119071	6	2 x 10	26	14	4.8	6.9	0.2	Black	100	Request a quote	127
53129171	10	2 x 8	26	14	6.4	7.2	0.2	Brown	100	Request a quote	5
531291171	10	2 x 8	26	14	6.4	7.2	0.2	Cream	100	Request a quote	16
53129271	10	2 x 8	26	14	6.4	7.2	0.2	Red	100	Request a quote	59
53149661	16	2 x 6	30	14	8.2	9.6	0.2	Blue	50	Request a quote	19
53149561	16	2 x 6	30	14	8.2	9.6	0.2	Green	50	Request a quote	Backorder
531491161	16	2 x 6	30	14	8.2	9.6	0.2	Cream	50	Request a quote	Backorder

More Information
Brand	WKK
Material	Copper
Insulation material	Polypropylene
Temperature range (°C)	Up to +105
Minimum coating thickness	3 µm
Approvals	DIN 46228/4
