WKK - Insulated bootlace ferrules - Singular

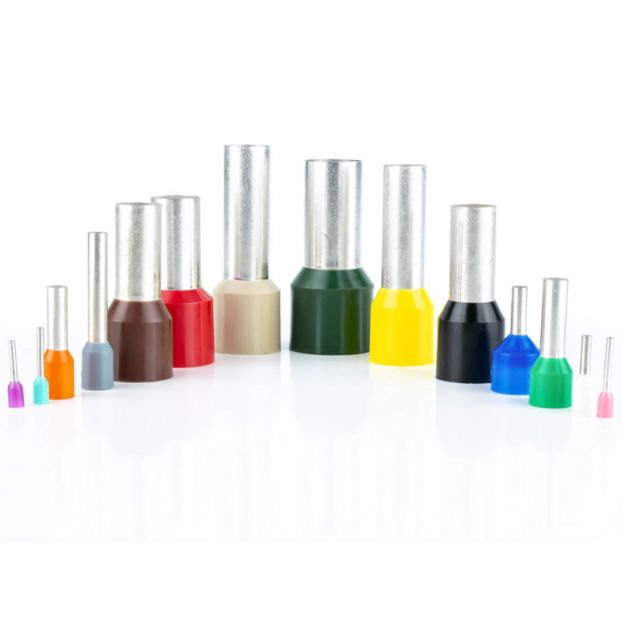

Insulated bootlace ferrules (with insulation sleeve, singular), availabe in 47 versions. A bootlace ferrule is used to create an optimal electrical contact between copper wires in the core of cables and the mounting clip. All of our bootlace ferrules meet the DIN 46228/1 standardization.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Mm²

AWG

L1 (mm)

L2 (mm)

Color

Grouped product items
Art.no.	Mm²	AWG	L1 (mm)	L2 (mm)	D1 (mm)	D2 (mm)	S1 (mm)	Color	PU (pcs.)	Price excl. VAT	Stock (pcs.)
522211101	0.14	26	10	6	0.7	1.6	0.15	Brown	500	Request a quote	246
522228101	0.14	26	10	6	0.7	1.6	0.15	Grey	500	Request a quote	50
522411101	0.14	26	12	8	0.7	1.6	0.15	Brown	500	Request a quote	9
522428101	0.14	26	12	8	0.7	1.6	0.15	Grey	500	Request a quote	20
523237101	0.25	24	10	6	0.75	1.8	0.15	Purple	500	Request a quote	15
523214101	0.25	24	10	6	0.75	1.8	0.15	Yellow	500	Request a quote	2
5232216101	0.25	24	10	6	0.75	1.8	0.15	Blue	500	Request a quote	67
523437101	0.25	24	12	8	0.75	1.8	0.15	Purple	500	Request a quote	57
523414101	0.25	24	12	8	0.75	1.8	0.15	Yellow	500	Request a quote	92
5234216101	0.25	24	12	8	0.75	1.8	0.15	Blue	500	Request a quote	40
5242313101	0.34	22	10	6	0.8	2	0.15	Pink	500	Request a quote	1
524215101	0.34	22	10	6	0.8	2	0.15	Green	500	Request a quote	Backorder
5242215101	0.34	22	10	6	0.8	2	0.15	Turquoise	500	Request a quote	9
5244313101	0.34	22	12	8	0.8	2	0.15	Pink	500	Request a quote	33
524415101	0.34	22	12	8	0.8	2	0.15	Green	500	Request a quote	181
5244215101	0.34	22	12	8	0.8	2	0.15	Turquoise	500	Request a quote	65
525219101	0.5	20	12	6	1	2.6	0.15	White	500	Request a quote	12
525223101	0.5	20	12	6	1	2.6	0.15	Orange	500	Request a quote	50
525439101	0.5	20	14	8	1	2.6	0.15	White	500	Request a quote	199
525423101	0.5	20	14	8	1	2.6	0.15	Orange	500	Request a quote	163
525619101	0.5	20	16	10	1	2.6	0.15	White	500	Request a quote	17
525623101	0.5	20	16	10	1	2.6	0.15	Orange	500	Request a quote	10
526238101	0.75	18	12	6	1.2	2.8	0.15	Grey	500	Request a quote	Backorder
526216101	0.75	18	12	6	1.2	2.8	0.15	Blue	500	Request a quote	5
526229101	0.75	18	12	6	1.2	2.8	0.15	White	500	Request a quote	Backorder
526438101	0.75	18	14	8	1.2	2.8	0.15	Grey	500	Request a quote	159
526416101	0.75	18	14	8	1.2	2.8	0.15	Blue	500	Request a quote	287
526429101	0.75	18	14	8	1.2	2.8	0.15	White	500	Request a quote	326
526638101	0.75	18	16	10	1.2	2.8	0.15	Grey	500	Request a quote	9
526616101	0.75	18	16	10	1.2	2.8	0.15	Blue	500	Request a quote	15
526629101	0.75	18	16	10	1.2	2.8	0.15	White	500	Request a quote	12
526738101	0.75	18	18	12	1.2	2.8	0.15	Grey	500	Request a quote	13
526716101	0.75	18	18	12	1.2	2.8	0.15	Blue	500	Request a quote	Backorder
526729101	0.75	18	18	12	1.2	2.8	0.15	White	500	Request a quote	12
527212101	1	18	12	6	1.4	3	0.15	Red	500	Request a quote	20
527224101	1	18	12	6	1.4	3	0.15	Yellow	500	Request a quote	Backorder
527412101	1	18	14	8	1.4	3	0.15	Red	500	Request a quote	112
527424101	1	18	14	8	1.4	3	0.15	Yellow	500	Request a quote	117
527612101	1	18	16	10	1.4	3	0.15	Red	500	Request a quote	7
527624101	1	18	16	10	1.4	3	0.15	Yellow	500	Request a quote	5
527712101	1	18	18	12	1.4	3	0.15	Red	500	Request a quote	16
527724101	1	18	18	12	1.4	3	0.15	Yellow	500	Request a quote	Backorder
528210101	1.5	16	12	6	1.7	3.5	0.15	Black	500	Request a quote	4
528222101	1.5	16	12	6	1.7	3.5	0.15	Red	500	Request a quote	Backorder
528410101	1.5	16	14	8	1.7	3.5	0.15	Black	500	Request a quote	220
528422101	1.5	16	14	8	1.7	3.5	0.15	Red	500	Request a quote	75
528610101	1.5	16	16	10	1.7	3.5	0.15	Black	500	Request a quote	63
528622101	1.5	16	16	10	1.7	3.5	0.15	Red	500	Request a quote	65
528710101	1.5	16	18	12	1.7	3.5	0.15	Black	500	Request a quote	61
528722101	1.5	16	18	12	1.7	3.5	0.15	Red	500	Request a quote	31
5281210101	1.5	16	24	18	1.7	3.5	0.15	Black	500	Request a quote	8
5281222101	1.5	16	24	18	1.7	3.5	0.15	Red	500	Request a quote	6
529436101	2.5	14	14	8	2.2	4.2	0.15	Blue	500	Request a quote	64
529418101	2.5	14	14	8	2.2	4.2	0.15	Grey	500	Request a quote	44
529618101	2.5	14	16	10	2.2	4.2	0.15	Grey	500	Request a quote	6
529636101	2.5	14	16	10	2.2	4.2	0.15	Blue	500	Request a quote	62
529718101	2.5	14	18	12	2.2	4.2	0.15	Grey	500	Request a quote	4
529726101	2.5	14	18	12	2.2	4.2	0.15	Blue	500	Request a quote	2
5291218101	2.5	14	24	18	2.2	4.2	0.15	Grey	500	Request a quote	1
5291226101	2.5	14	24	18	2.2	4.2	0.15	Blue	500	Request a quote	47
5210613101	4	12	17	10	2.8	4.8	0.2	Orange	500	Request a quote	14
5210628101	4	12	17	10	2.8	4.8	0.2	Grey	500	Request a quote	334
5210713101	4	12	20	12	2.8	4.8	0.2	Orange	500	Request a quote	26
5210728101	4	12	20	12	2.8	4.8	0.2	Grey	500	Request a quote	13
5210121371	4	12	26	18	2.8	4.8	0.2	Orange	100	Request a quote	Backorder
5210122871	4	12	26	18	2.8	4.8	0.2	Grey	100	Request a quote	19
521173471	6	10	20	12	3.5	6.3	0.2	Yellow	100	Request a quote	340
521171571	6	10	20	12	3.5	6.3	0.2	Green	100	Request a quote	309
521172071	6	10	20	12	3.5	6.3	0.2	Black	100	Request a quote	337
5211123471	6	10	26	18	3.5	6.3	0.2	Yellow	100	Request a quote	116
5211121571	6	10	26	18	3.5	6.3	0.2	Green	100	Request a quote	Backorder
5211122071	6	10	26	18	3.5	6.3	0.2	Black	100	Request a quote	48
521273271	10	8	22	12	4.5	7.6	0.2	Red	100	Request a quote	336
521271171	10	8	22	12	4.5	7.6	0.2	Brown	100	Request a quote	113
5212721171	10	8	22	12	4.5	7.6	0.2	Cream	100	Request a quote	115
5212123271	10	8	28	18	4.5	7.6	0.2	Red	100	Request a quote	71
5212121171	10	8	28	18	4.5	7.6	0.2	Brown	100	Request a quote	Backorder
52121221171	10	8	28	18	4.5	7.6	0.2	Cream	100	Request a quote	17
521473671	16	6	24	12	5.8	8.8	0.2	Blue	100	Request a quote	61
5214711171	16	6	24	12	5.8	8.8	0.2	Cream	100	Request a quote	16
521472571	16	6	24	12	5.8	8.8	0.2	Green	100	Request a quote	111
5214123671	16	6	28	18	5.8	8.8	0.2	Blue	100	Request a quote	12
52141211171	16	6	28	18	5.8	8.8	0.2	Cream	100	Request a quote	Backorder
5214122571	16	6	28	18	5.8	8.8	0.2	Green	100	Request a quote	19
5215113461	25	4	30	16	7.3	11.2	0.2	Yellow	50	Request a quote	82
5215111061	25	4	30	16	7.3	11.2	0.2	Black	50	Request a quote	2
5215112161	25	4	30	16	7.3	11.2	0.2	Brown	50	Request a quote	5
5215123461	25	4	30	18	7.3	11.2	0.2	Yellow	50	Request a quote	5
5215121061	25	4	30	18	7.3	11.2	0.2	Black	50	Request a quote	Backorder
5215122161	25	4	30	18	7.3	11.2	0.2	Brown	50	Request a quote	11
5215153461	25	4	36	22	7.3	11.2	0.2	Yellow	50	Request a quote	12
5215151061	25	4	36	22	7.3	11.2	0.2	Black	50	Request a quote	40
5215152161	25	4	36	22	7.3	11.2	0.2	Brown	50	Request a quote	15
5216113261	35	2	30	16	8.3	12.7	0.2	Red	50	Request a quote	47
52161121161	35	2	30	16	8.3	12.7	0.2	Cream	50	Request a quote	63
5216123261	35	2	30	18	8.3	12.7	0.2	Red	50	Request a quote	6
52161221161	35	2	30	18	8.3	12.7	0.2	Cream	50	Request a quote	3
5216161261	35	2	39	25	8.3	12.7	0.2	Red	50	Request a quote	9
52161621161	35	2	39	25	8.3	12.7	0.2	Cream	50	Request a quote	154
5217133661	50	1	36	20	10.3	15	0.3	Blue	50	Request a quote	25
52171321261	50	1	36	20	10.3	15	0.3	Olive	50	Request a quote	7
5217161661	50	1	40	25	10.3	15	0.3	Blue	50	Request a quote	14
52171611261	50	1	40	25	10.3	15	0.3	Olive	50	Request a quote	2
5218141441	70	2/0	37	21	13.5	16	0.4	Yellow	25	Request a quote	92
5219163241	95	3/0	44	25	14.5	18	0.4	Red	25	Request a quote	34
5220173641	120	4/0	48	27	16.5	20	0.45	Blue	25	Request a quote	2
5221193441	150	300 MCM	58	32	19.5	23	0.5	Yellow	25	Request a quote	Backorder

More Information
Brand	WKK
Material	Copper
Insulation material	Polypropylene
Temperature range (°C)	Up to +105
Minimum coating thickness	3 µm
Approvals	DIN 46228/4
