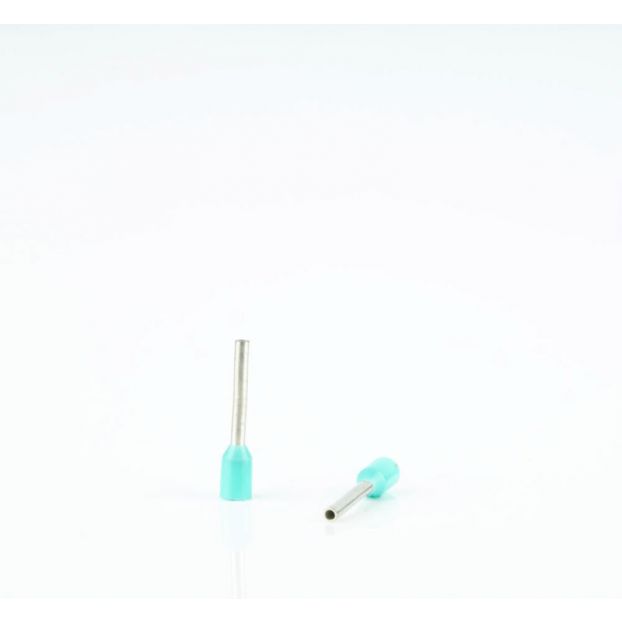

WKK - Insulated bootlace ferrules - Singular - Ce 003408 - Turquoise - 500 pieces
Stock (pcs.): 65
Insulated bootlace ferrules (with insulation sleeve, singular), availabe in 47 versions. A bootlace ferrule is used to create an optimal electrical contact between copper wires in the core of cables and the mounting clip. All of our bootlace ferrules meet the DIN 46228/1 standardization.
| Art.no. | 5244215101 |
|---|---|
| Brand | WKK |
| Bootlace ferrule type | Ce 003408 |
| Material | Copper |
| Insulation material | Polypropylene |
| Temperature range (°C) | Up to +105 |
| Minimum coating thickness | 3 µm |
| Approvals | DIN 46228/4 |
| Mm² | 0.34 |
| AWG | 22 |
| L1 (mm) | 12 |
| L2 (mm) | 8 |
| D1 (mm) | 0.8 |
| D2 (mm) | 2 |
| S1 (mm) | 0.15 |
| Color | Turquoise |
| PU (pcs.) | 500 |
