WKK - HTFE - Teflon® - Thin-wall heat shrink tubing - 1.5:1 - Operating temperature up to 260 °C - Resistant to chemicals

Starting at € 10.82 Excl. VAT

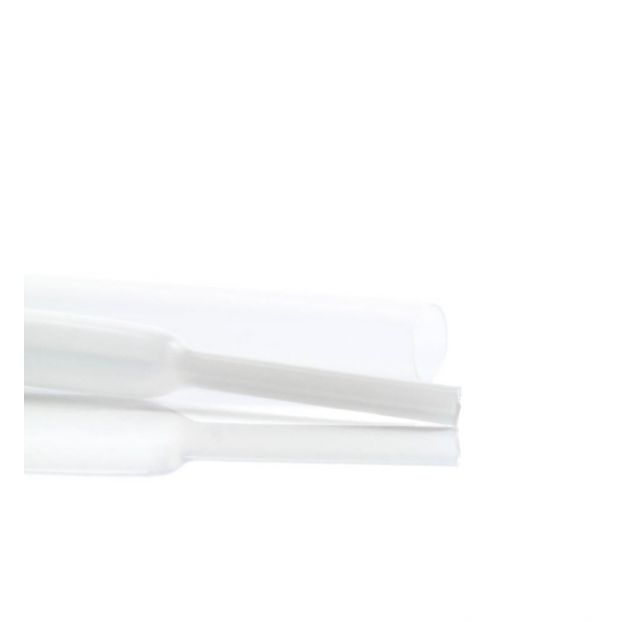

HTFE heat shrink tubing is made of Teflon (polytetrafluoroethylene - PTFE). This makes the HTFE perfectly suited for use in the automotive, defense and aerospace industry. Offers good stability when exposed to high temperatures, is resistant to chemicals and flame retardant. Shrink ratio 1,5:1.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	PU / Master Carton	Price excl. VAT	Stock (pcs.)
234511591	1.22	1.52	0.97	0.3	Length piece	1000	€ 10.82 Excl. VAT	70
234521591	1.22	1.93	1.17	0.3	Length piece	1000	€ 11.33 Excl. VAT	674
234531591	1.22	2.36	1.45	0.3	Length piece	1000	€ 11.71 Excl. VAT	110
234541591	1.22	3.05	1.82	0.3	Length piece	1000	€ 13.61 Excl. VAT	266
234551591	1.22	3.81	2.26	0.3	Length piece	1000	€ 14.39 Excl. VAT	301
234561591	1.22	4.85	2.8	0.3	Length piece	500	€ 15.91 Excl. VAT	494
234571591	1.22	6.1	3.55	0.38	Length piece	500	€ 19.73 Excl. VAT	868
234581591	1.22	7.67	4.4	0.38	Length piece	500	€ 21.12 Excl. VAT	46
234591591	1.22	9.4	5.45	0.38	Length piece	500	€ 26.61 Excl. VAT	Backorder
2345101591	1.22	10.92	6.9	0.38	Length piece	500	€ 32.97 Excl. VAT	24
2345111591	1.22	11.94	8.56	0.38	Length piece	500	€ 38.19 Excl. VAT	99

More Information
Brand	WKK
Heat shrink tubing model	Thin-wall (flexible) heat shrink tubing
Heat shrink tubing type	HTFE
Shrink ratio	1.5:1
Color	Transparent
Flame retardant	VW-1
Self-extinguishing	Self-extinguishing in 30 seconds
With adhesive	No
Printable	No
Operating temperature (°C)	-65 up to +260
Minimum full recovery temperature (°C)	+350
Longitudinal change	0 up to 10% max.
Material quality	Modified tetrafluoretylene
UL / CSA approval	No
MIL-SPEC	Yes
UV resistant	No
Halogen-free	No
Properties	Superior chemical and mechanical performance / Flame retardant and self-extinguishing in 30 seconds / Very low friction coefficient / Excellent electrical properties
