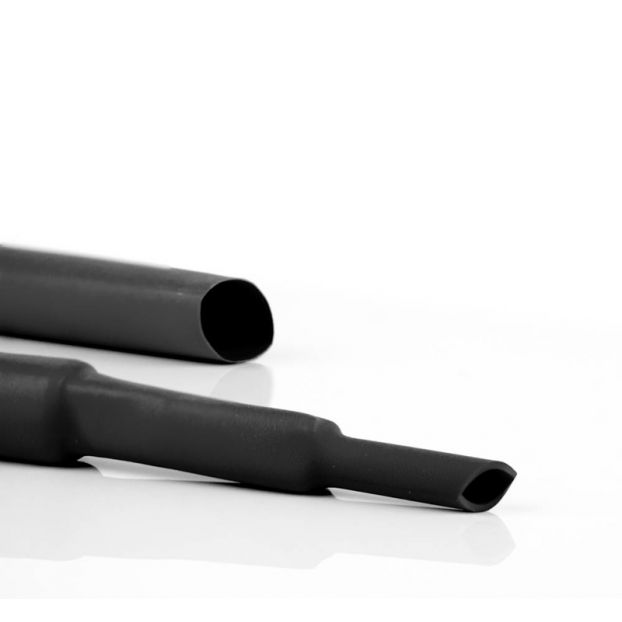

WKK - HRTM - Medium-wall heat shrink tubing - 3:1 - With adhesive (through co-extrusion) - Operating temperature up to 110 °C

Starting at € 4.44 Excl. VAT

HRTM medium-wall heat shrink tubing, with UV resistant properties. The adhesive lining, which melts when the tubing is heated and shrunk, guarantees a seamless, waterproof application. UV resistant. Shrink ratio 3:1.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	PU / Master Carton	Price excl. VAT	Stock (pcs.)
243271401	1	8	2	1.4	Length piece	350	€ 4.44 Excl. VAT	113
2432101401	1	12	3	1.4	Length piece	250	€ 5.49 Excl. VAT	2217
2432121401	1	16	5	1.5	Length piece	160	€ 6.58 Excl. VAT	2021
2432151401	1	22	6	2	Length piece	180	€ 7.79 Excl. VAT	3976
2432191401	1	33	8	2	Length piece	140	€ 9.78 Excl. VAT	5377
2432251401	1	40	12	2	Length piece	72	€ 11.93 Excl. VAT	2511
2432291401	1	55	16	2	Length piece	60	€ 14.65 Excl. VAT	793
2432311401	1	65	19	2.5	Length piece	40	€ 16.96 Excl. VAT	389
2432321401	1	75	22	2.7	Length piece	32	€ 20.47 Excl. VAT	562
2432331401	1	85	25	2.8	Length piece	30	€ 25.05 Excl. VAT	480
2432341401	1	95	25	2.8	Length piece	24	€ 29.33 Excl. VAT	619
2432371401	1	115	34	3.4	Length piece	14	€ 38.19 Excl. VAT	335
2432401401	1	140	42	3.4	Length piece	16	€ 51.47 Excl. VAT	323
2432421401	1	160	50	3.4	Length piece	14	€ 63.64 Excl. VAT	165
243271501	1.22	8	2	1.4	Length piece	350	€ 5.49 Excl. VAT	Backorder
2432101501	1.22	12	3	1.4	Length piece	250	€ 6.73 Excl. VAT	2909
2432121501	1.22	16	5	1.5	Length piece	160	€ 7.64 Excl. VAT	2295
2432151501	1.22	22	6	2	Length piece		€ 9.48 Excl. VAT	309
2432191501	1.22	33	8	2	Length piece	140	€ 11.93 Excl. VAT	5445
2432251501	1.22	40	12	2	Length piece	72	€ 14.65 Excl. VAT	3215
2432291501	1.22	55	16	2	Length piece	60	€ 17.87 Excl. VAT	2671
2432311501	1.22	65	19	2.5	Length piece	40	€ 20.78 Excl. VAT	508
2432321501	1.22	75	22	2.7	Length piece	32	€ 25.05 Excl. VAT	98
2432331501	1.22	85	25	2.8	Length piece	30	€ 30.71 Excl. VAT	381
2432341501	1.22	95	25	2.8	Length piece	24	€ 35.76 Excl. VAT	354
2432371501	1.22	115	34	3.4	Length piece	14	€ 46.60 Excl. VAT	227
2432401501	1.22	140	42	3.4	Length piece	16	€ 62.78 Excl. VAT	217

More Information
Brand	WKK
Heat shrink tubing model	Medium-wall heat shrink tubing
Heat shrink tubing type	HRTM
Shrink ratio	3:1
Color	Black
Shape	Round
Flame retardant	No
Self-extinguishing	No
With adhesive	Yes
Printable	No
Operating temperature (°C)	-55 up to +110
Minimum full recovery temperature (°C)	+120
Longitudinal change	0 up to 10% max.
UL / CSA approval	No
MIL-SPEC	No
UV resistant	Yes
Halogen-free	Yes
Properties	Medium-wall heat shrink tubing with hot melt adhesive / Co-extrusion technology / Good electrical and mechanical properties / Ideal for low voltage applications
