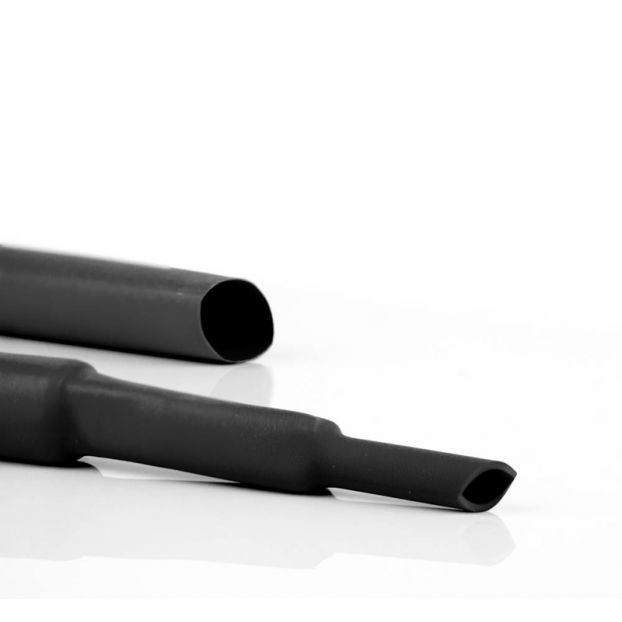

WKK - HRA-6X - Heavy-wall heat shrink tubing - 6:1 - With adhesive - Operating temperature up to 110 °C

The HRA-6X is heavy-wall heat shrink tubing with a shrink ratio of 6:1. This type of heat shrink tubing contains an adhesive coating which melts when the tubing is heated and shrunk, guaranteeing optimal sealing. UV resistant. Available in black.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	PU / Master Carton	Price excl. VAT	Stock (pcs.)
254411501	1.22	19	3.2	3.2	Length piece		Call for price	60
254421501	1.22	33	5.5	3.4	Length piece	108	Call for price	44
254431501	1.22	44.4	7.4	3.6	Length piece	60	Call for price	461
254441501	1.22	50.8	8.3	4.7	Length piece	60	Call for price	35
254451501	1.22	69.8	11.7	4.7	Length piece	32	Call for price	31
254461501	1.22	88.9	17.1	4.7	Length piece	24	Call for price	21
254471501	1.22	119.4	22.9	4.7	Length piece	14	Call for price	22
254481501	1.22	235	40	4.7	Length piece	12	Call for price	Backorder

More Information
Brand	WKK
Heat shrink tubing model	Heavy-wall heat shrink tubing
Heat shrink tubing type	HRA-6X
Shrink ratio	6:1
Color	Black
Shape	Round
Flame retardant	No
Self-extinguishing	No
With adhesive	Yes
Printable	No
Operating temperature (°C)	-55 up to +110
Minimum full recovery temperature (°C)	+120
Longitudinal change	0 up to 10% max.
Material quality	Crosslinked polyolefin
UL / CSA approval	No
MIL-SPEC	No
UV resistant	Yes
Halogen-free	Yes
Properties	Heavy-wall heat shrink tubing with hot melt adhesive / Excellent sealing properties / Extra heavy-wall
