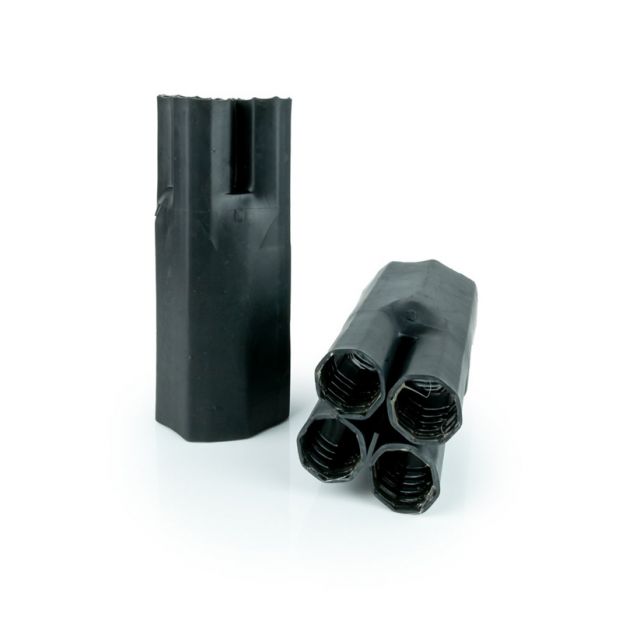

WKK - HLB - Heat shrinkable cable breakouts - With adhesive - Low voltage - For low voltage cable breakouts with 2 to 5 cores - Operating temperature up to 110 °C

Starting at €  7.34 Excl. VAT (1 pcs.)

Available in five versions: HLB2 (low voltage cable breakout with 2 cores), HLB3 (low voltage cable breakout with 3 cores), HLB3..L (low voltage extended cable breakout with 3 cores), HLB4 (low voltage cable breakout with 4 cores) and HLB 5 (low voltage cable breakout with 5 cores). Excellent sealing, perfect for low voltage applications. UV resistant. Meets RoHS requirements.
View versions and order

Versions

Grouped product items
Quantity Art.no. Number of cores As supplied: length in mm As supplied: inner diameter large in mm (min.) As supplied: inner diameter small in mm (min.) After recovery: wall thickness in mm (min.) After recovery: inner diameter large in mm (max.) After recovery: inner diameter small in mm (min.) PU (pcs.) PU / Master Carton Price excl. VATStock (pcs.)
273014102 2 55 22 11 2.2 12 3.5 1 1500
€  9.01 Excl. VAT
3394
273015102 2 80 30 14 2.6 14 4.5 1 600
€  7.34 Excl. VAT
1528
273016102 2 100 40 15 2.1 16 5 1 300
€  9.16 Excl. VAT
560
273017102 2 95 60 25 2.6 23 8 1 500
€  9.16 Excl. VAT
764
273048102 2 155 60 25 2.6 23 8 1 350
€  10.54 Excl. VAT
910
273018102 2 165 100 3.1 30 9 1 100
€  23.67 Excl. VAT
34
273019102 2 150 20 3.8 75 6 1 70
€  28.57 Excl. VAT
Backorder
273020102 3 100 38 15 2.7 16 5 1 300
€  9.01 Excl. VAT
1161
273021102 3 170 60 26 3 25 8 1 220
€  15.42 Excl. VAT
1530
273022102 3 190 80 34 3.5 38 16 1 100
€  22.45 Excl. VAT
658
273023102 3 220 110 46 4 50 19 1 50
€  28.72 Excl. VAT
Backorder
273024102 3 230 125 55 4 57 20 1 35
€  34.07 Excl. VAT
270
273025102 3 250 140 62 4 70 26 1 30
€  39.26 Excl. VAT
68
273026102 3 250 170 75 4 77 28 1 20
€  81.74 Excl. VAT
14
273049102 3 125 38 15 2.1 16 5 1 300
€  9.07 Excl. VAT
Backorder
More Information
BrandWKK
Heat shrink tubing modelHeat shrinkable cable breakouts
Heat shrink tubing typeHLB
ColorBlack
Flame retardantNo
Self-extinguishingNo
With adhesiveYes
PrintableNo
Operating temperature (°C)-55 up to +110
Minimum full recovery temperature (°C)+110
Longitudinal change0 up to 10% max.
Material qualityCrosslinked polyolefin
UL / CSA approvalNo
MIL-SPECNo
UV resistantYes
Halogen-freeYes
PropertiesHLB2 = low voltage cable breakout with 2 - cores / HLB 3 = low voltage cable breakout with 3 - cores / HLB3..L = low voltage cable breakout with 3 - cores (extended length) / HLB4 = low voltage cable breakout with 4 - cores / HLB5 = low voltage cable brea
