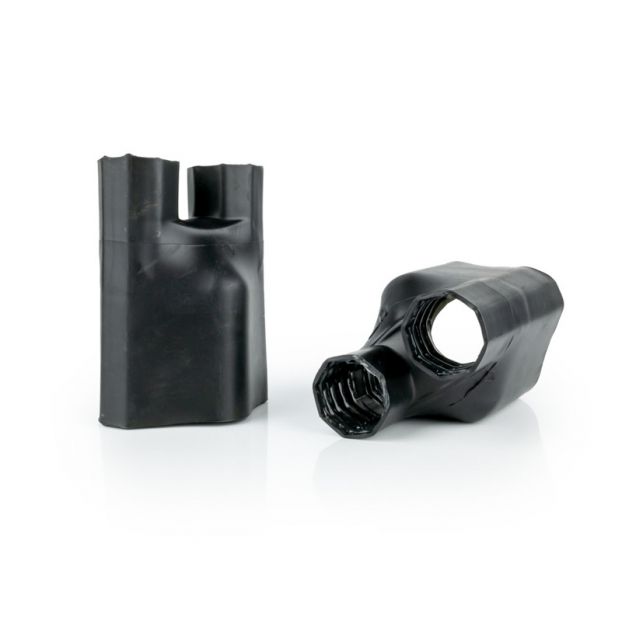

WKK - HLB - Heat shrinkable cable breakouts - With adhesive - Low voltage - For low voltage cable breakouts with 2 to 5 cores - Operating temperature up to 110 °C - 22/9 - HLB 205
€ 9.01 Excl. VAT
Stock (pcs.): 3598
Available in five versions: HLB2 (low voltage cable breakout with 2 cores), HLB3 (low voltage cable breakout with 3 cores), HLB3..L (low voltage extended cable breakout with 3 cores), HLB4 (low voltage cable breakout with 4 cores) and HLB 5 (low voltage cable breakout with 5 cores). Excellent sealing, perfect for low voltage applications. UV resistant. Meets RoHS requirements.
| Art.no. | 273014102 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Heat shrinkable cable breakouts |
| Heat shrink tubing type | HLB |
| Color | Black |
| Number of cores | 2 |
| As supplied: length in mm | 55 |
| As supplied: inner diameter large in mm (min.) | 22 |
| As supplied: inner diameter small in mm (min.) | 11 |
| After recovery: wall thickness in mm (min.) | 2.2 |
| After recovery: inner diameter large in mm (max.) | 12 |
| After recovery: inner diameter small in mm (min.) | 3.5 |
| After recovery: length in mm | 60 |
| Flame retardant | No |
| Self-extinguishing | No |
| With adhesive | Yes |
| Printable | No |
| Operating temperature (°C) | -55 up to +110 |
| Minimum full recovery temperature (°C) | +110 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| UL / CSA approval | No |
| MIL-SPEC | No |
| UV resistant | Yes |
| Halogen-free | Yes |
| Meets | RoHS |
| Properties | HLB2 = low voltage cable breakout with 2 - cores / HLB 3 = low voltage cable breakout with 3 - cores / HLB3..L = low voltage cable breakout with 3 - cores (extended length) / HLB4 = low voltage cable breakout with 4 - cores / HLB5 = low voltage cable brea |
| PU (pcs.) | 1 |
| PU / Master Carton | 1500 |
