WKK - Heat shrink solder butt connectors - Insulated - Heat shrinkable

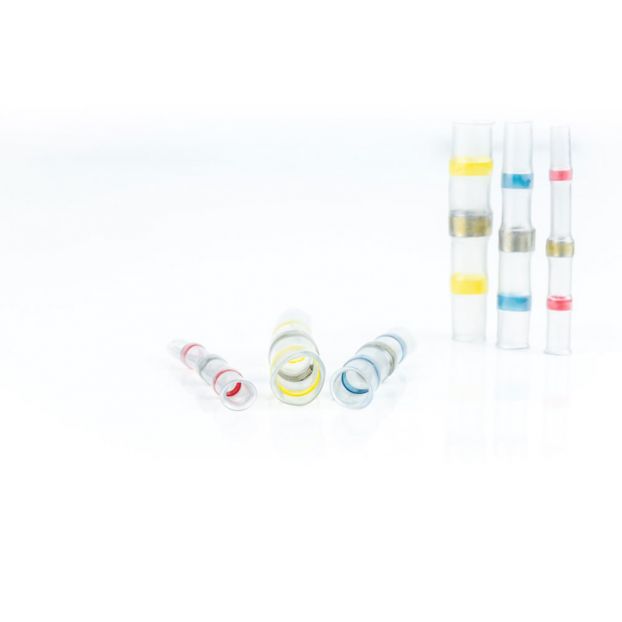

Heat shrink butt connectors are the solution for connecting cable in a fast and reliable way. Make a watertight and soldered connection with a heat source, such as a lighter. Insulated. Available in yellow, blue, red and transparent. Shrink temperature: >+140°C.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Wire range (mm²)

Length (mm)

Grouped product items
Art.no.	Insulation color	Wire range (mm²)	Length (mm)	PU (pcs.)	Price excl. VAT	Stock (pcs.)
491120973	Transparent	0.3 ~ 0.8	26	100	Call for price	72
491226273	Red	0.8 ~ 2.0	42	100	Call for price	68
491526673	Blue	2.0 ~ 4.0	42	100	Call for price	29
491626473	Yellow	4.0 ~ 6.0	42	100	Call for price	Backorder

More Information
Brand	WKK
Crimp terminal type	Heat shrink solder butt connectors
Temperature range (°C)	-55 up to +125
Shrink temperature (°C)	> +140
Insulation material	Polyolefin
Shrink ratio	3:1
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
