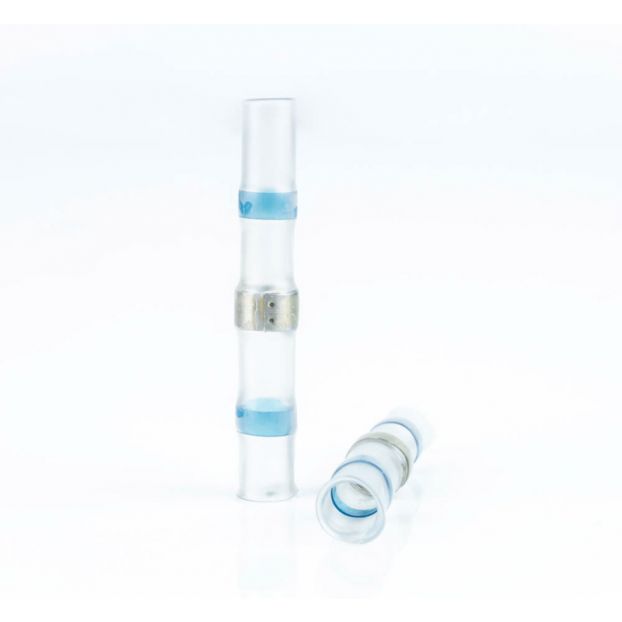

WKK - Heat shrink solder butt connectors - Insulated - Heat shrinkable - 2,0 ~ 4,0mm - Blue - 100 pieces
€ 91.39 Excl. VAT
Stock (pcs.): Backorder
Heat shrink butt connectors are the solution for connecting cable in a fast and reliable way. Make a watertight and soldered connection with a heat source, such as a lighter. Insulated. Available in yellow, blue, red and transparent. Shrink temperature: >+140°C.
| Art.no. | 491526673 |
|---|---|
| Brand | WKK |
| Crimp terminal type | Heat shrink solder butt connectors |
| Temperature range (°C) | -55 up to +125 |
| Shrink temperature (°C) | > +140 |
| Insulation material | Polyolefin |
| Insulation color | Blue |
| Wire range (mm²) | 2.0 ~ 4.0 |
| Length (mm) | 42 |
| Shrink ratio | 3:1 |
| For crimp terminal type | Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234 |
| PU (pcs.) | 100 |
