WKK - Heat shrink butt connectors - Insulated - Heat shrinkable

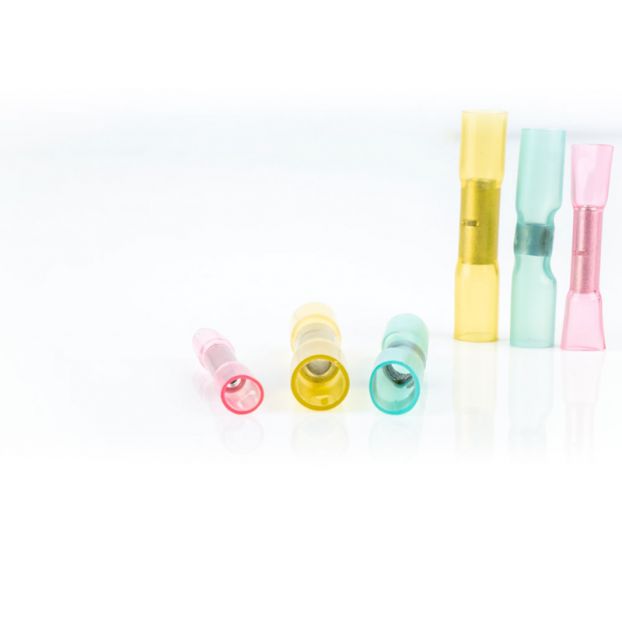

Heat shrink butt connectors, for easily connecting wires (waterproof). The heat shrink tubing ensures a tight, waterproof connection. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Wire range (mm²)

AWG

Length (mm)

Grouped product items
Art.no.	Insulation color	Wire range (mm²)	AWG	Length (mm)	PU (pcs.)	Price excl. VAT	Stock (pcs.)
4843241271	Red	0.5 ~ 1.5	22 ~ 16	35	100	Call for price	292
4844242671	Blue	1.5 ~ 2.5	16 ~ 14	35	100	Call for price	196
4846253471	Yellow	4.0 ~ 6.0	12 ~ 10	35	100	Call for price	56

More Information
Brand	WKK
Crimp terminal type	Butt connectors
Temperature range (°C)	-55 up to +125
Shrink temperature (°C)	-60 tot +100
Insulation material	Nylon
Shrink ratio	3:1
Approvals	RoHS
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
Properties	100% waterproof with heat shrink tubing
