WKK - HCFT - Heat shrinkable cable feed throughs - With adhesive - Low voltage - Operating temperature up to 110 °C - 160/100
€ 31.02 Excl. VAT
Stock (pcs.): Backorder

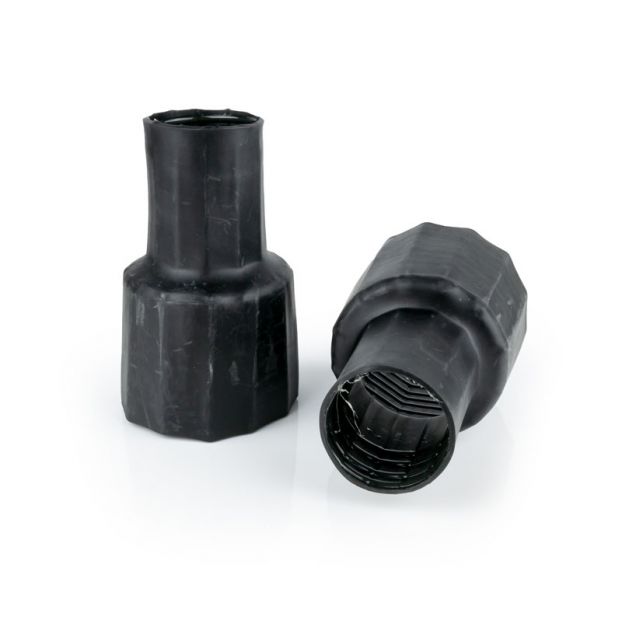

HCFT shrinkable cable feed throughs contain adhesive, garantueeing excellent sealing properties and making them very suited for low voltage applications. UV and weather resistant. Meet RoHS requirements.
| Art.no. | 27509101 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Heat shrinkable cable feed throughs |
| Heat shrink tubing type | HCFT |
| Color | Black |
| As supplied: inner diameter large in mm (min.) | 160 |
| As supplied: inner diameter small in mm (min.) | 100 |
| After recovery: wall thickness in mm (min.) | 3.5 |
| After recovery: inner diameter large in mm (max.) | 92 |
| After recovery: inner diameter small in mm (min.) | 45 |
| After recovery: length in mm | 150 |
| Flame retardant | No |
| Self-extinguishing | No |
| With adhesive | Yes |
| Printable | No |
| Operating temperature (°C) | -55 up to +110 |
| Minimum full recovery temperature (°C) | +110 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| MIL-SPEC | No |
| UV resistant | Yes |
| Halogen-free | Yes |
| Meets | RoHS |
| Properties | HLB2 = low voltage cable breakout with 2 - cores / HLB 3 = low voltage cable breakout with 3 - cores / HLB3..L = low voltage cable breakout with 3 - cores (extended length) / HLB4 = low voltage cable breakout with 4 - cores / HLB5 = low voltage cable brea |
| PU (pcs.) | 1 |
