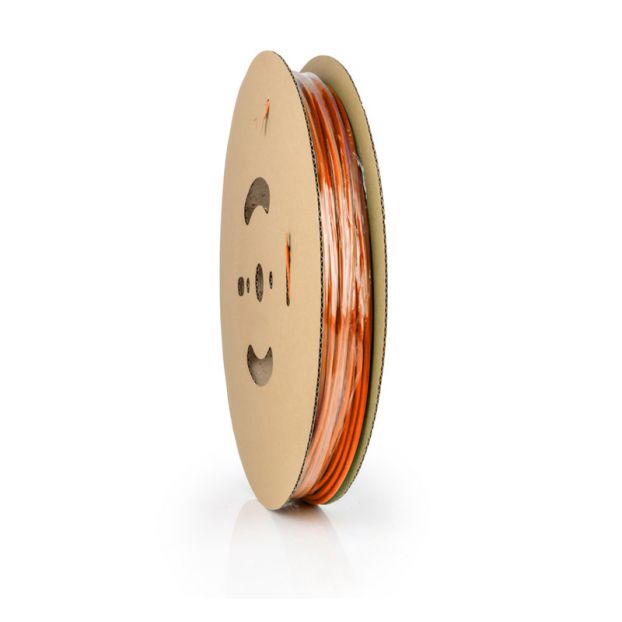

WKK - HBTM - Medium-wall heat shrink tubing for busbars - 2.5:1 - Min. full shrink temperature 120 °C - 100/40 - Red - On a reel - 15 meters
€ 641.59 Excl. VAT
Stock (pcs.): 594
HBTM medium-wall heat shrink tubing for busbars is made of modified polyolefin. Offers excellent electrical properties and creep current resistance. Halogen free and weather- and UV resistant. Available in the color red. Shrink ratio 2,5:1.
| Art.no. | 2626122221 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Medium-wall busbar insulation tubing |
| Heat shrink tubing type | HBTM |
| Shrink ratio | 2.5:1 |
| Color | Red |
| Length (mtr) | 15 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 100 |
| After recovery: inner diameter in mm (max.) | 40 |
| After recovery: wall thickness in mm (min.) | 2.8 |
| Packaging type | On a reel |
| Flame retardant | ASTM D2671 procedure B |
| Self-extinguishing | Yes |
| With adhesive | No |
| Printable | No |
| Operating temperature (°C) | -40 up to +120 |
| Minimum full recovery temperature (°C) | +110 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Modified polyolefin |
| MIL-SPEC | No |
| UV resistant | Yes |
| Halogen-free | Yes |
| Properties | Excellent electrical properties and creeping resistance / Flame retardant and self-extinguishing in 60 seconds / Up to 36 kV |
