WKK - HBTM - Medium-wall busbar insulation tubing - 2.5:1 - Min. full shrink temperature 120 °C

Starting at € 304.76 Excl. VAT

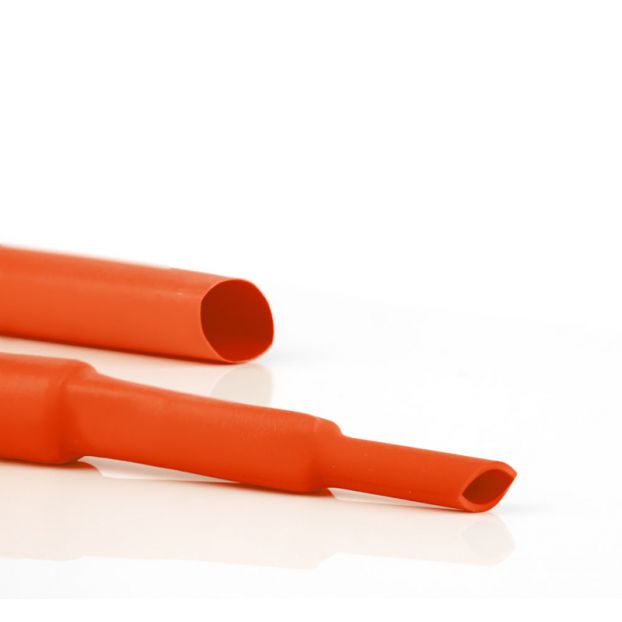

HBTM medium-wall heat shrink tubing for busbars is made of modified polyolefin. Offers excellent electrical properties and creep current resistance. Halogen free and weather- and UV resistant. Available in the color red. Shrink ratio 2,5:1.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Length (mtr)

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	Price excl. VAT	Stock (pcs.)
262612521	30	15	6	2,0	On a reel	€ 371.22 Excl. VAT	41
262642521	30	30	12	2,3	On a reel	€ 412.45 Excl. VAT	111
262662521	30	40	16	2.5	On a reel	€ 595.75 Excl. VAT	22
262672221	15	50	20	2.5	On a reel	€ 304.76 Excl. VAT	52
262692221	15	75	30	2.6	On a reel	€ 497.23 Excl. VAT	501
2626122221	15	100	40	2.8	On a reel	€ 641.59 Excl. VAT	594
2626132221	15	120	50	2.8	On a reel	€ 678.25 Excl. VAT	71

More Information
Brand	WKK
Heat shrink tubing model	Medium-wall busbar insulation tubing
Heat shrink tubing type	HBTM
Shrink ratio	2.5:1
Color	Red
Shape	Flat
Flame retardant	ASTM D2671 procedure B
Self-extinguishing	Yes
With adhesive	No
Printable	No
Operating temperature (°C)	-40 up to +120
Minimum full recovery temperature (°C)	+110
Longitudinal change	0 up to 10% max.
Material quality	Modified polyolefin
UL / CSA approval	No
MIL-SPEC	No
UV resistant	Yes
Halogen-free	Yes
Properties	Excellent electrical properties and creeping resistance / Flame retardant and self-extinguishing in 60 seconds / Up to 36 kV
