WKK - HBTH - Heavy-wall busbar insulation tubing - 2.5:1 - Min. full shrink temperature 120 °C

Starting at € 29.32 Excl. VAT

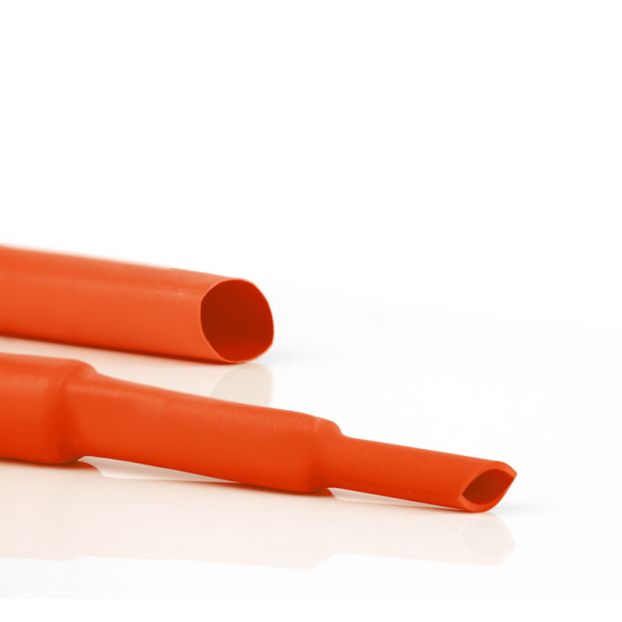

The HBTH heat shrink tubing for busbars is a heavy-wall heat shrink tube, with strong electrical properties and creep current resistance. Halogen free, weather- and UV resistant. Material: modified polyolefin. Available in the color red. Shrink ratio 2,5:1.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Length (mtr)

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	PU / Master Carton	Price excl. VAT	Stock (pcs.)
263631521	1.22	25	10	3,9	Length piece	120	€ 29.32 Excl. VAT	42
263691521	1.22	75	25	4	Length piece	20	€ 77.30 Excl. VAT	410
2636111521	1.22	95	30	4	Length piece	30	€ 79.44 Excl. VAT	54
2636131521	1.22	120	40	4.1	Length piece	30	€ 102.73 Excl. VAT	12

More Information
Brand	WKK
Heat shrink tubing model	Heavy-wall busbar insulation tubing
Heat shrink tubing type	HBTH
Shrink ratio	2.5:1
Color	Red
Shape	Flat
Flame retardant	No
Self-extinguishing	Self-extinguishing in 60 seconds
With adhesive	No
Printable	No
Operating temperature (°C)	-40 up to +120
Minimum full recovery temperature (°C)	+110
Longitudinal change	0 up to 10% max.
Material quality	Modified polyolefin
UL / CSA approval	No
MIL-SPEC	No
UV resistant	Yes
Halogen-free	Yes
Properties	Excellent electrical properties and creeping resistance / Flame retardant and self-extinguishing in 60 seconds / Up to 36 kV
