WKK - HBK - Thin-wall heat shrink tubing - 4:1 - With adhesive - Min. full shrink temperature 135 °C

Starting at € 4.58 Excl. VAT

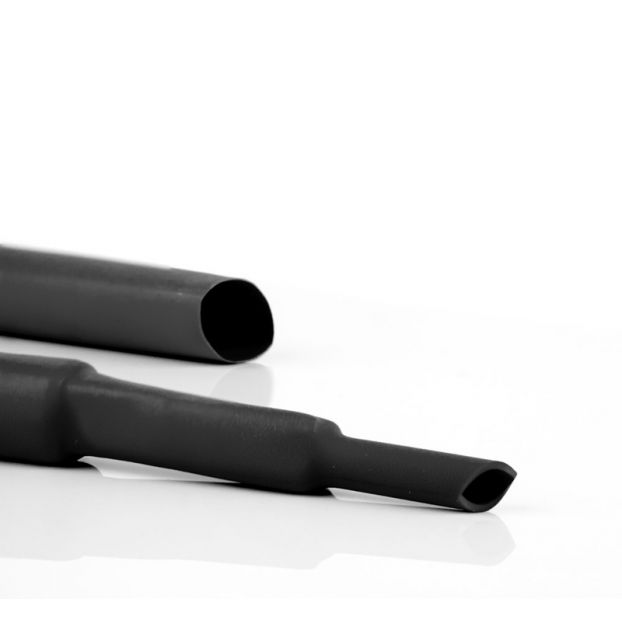

HBK thin-wall heat shrink tubing contains an adhesive lining, which melts when the tube is heated and therefore being shrunk. This lining ensures an effective barrier against liquids and moisture. Shrink ratio 4:1. Especially designed for the protection of splices and wire connections. Very well suited for use in the automotive industry. Available in black and transparent. Flame retardant.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	PU / Master Carton	Price excl. VAT	Stock (pcs.)
223321501	1.22	6.0	1.27	1.3	Length piece	600	€ 4.58 Excl. VAT	1149
223331501	1.22	8.0	1.65	1.52	Length piece	600	€ 6.40 Excl. VAT	1515
223341501	1.22	12.0	2.41	1.91	Length piece	250	€ 8.86 Excl. VAT	Backorder

More Information
Brand	WKK
Heat shrink tubing model	Thin-wall (flexible) heat shrink tubing
Heat shrink tubing type	HBK
Shrink ratio	4:1
Color	Black
Flame retardant	ASTM D2671 procedure B
Self-extinguishing	Self-extinguishing in 30 seconds
With adhesive	Yes
Printable	Yes
Operating temperature (°C)	-55 up to +125
Minimum shrink temperature (°C)	+70
Minimum full recovery temperature (°C)	+135
Longitudinal change	0 up to 10% max.
Material quality	Crosslinked adhesive lined polyolefin
UL / CSA approval	No
MIL-SPEC	No
UV resistant	No
Halogen-free	No
