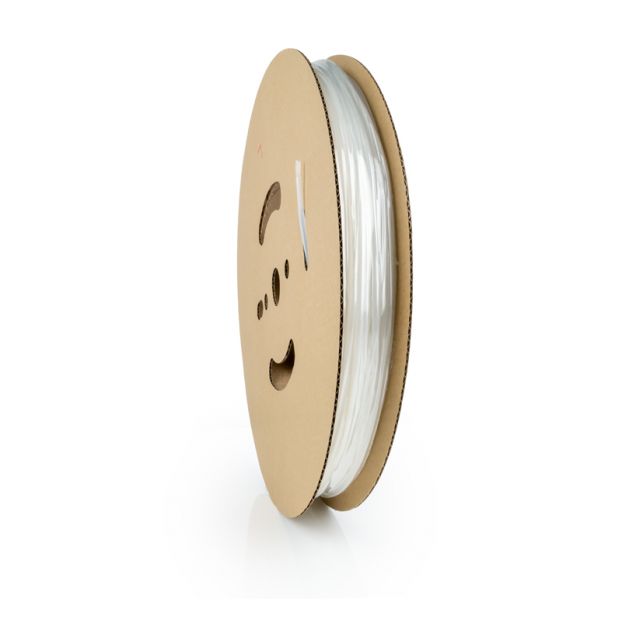

WKK - H-5R(3X) - Thin-wall heat shrink tubing - 3:1 - With adhesive - Operating temperature up to 125 °C - 3.0/1.0 - Transparent - On a reel - 30 meters
Stock (pcs.): 2
The H-5R(3X) thin-walled heat shrink tubing (shrink ratio 3:1) contains an adhesive layer on the inside that melts when the heat shrink tubing shrinks, for even better insulation and sealing of what this shrink tubing is used on. Applications include sealing electrical components in the automotive and communications industries. Flame retardant.
| Art.no. | 227233391 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-5R(3X) |
| Shrink ratio | 3:1 |
| Color | Transparent |
| Length (mtr) | 150 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 3.0 |
| After recovery: inner diameter in mm (max.) | 1.0 |
| After recovery: wall thickness in mm (min.) | 0.96 |
| Packaging type | On a reel |
| Flame retardant | ASTM D2671 procedure B |
| Self-extinguishing | Yes |
| With adhesive | Yes |
| Operating temperature (°C) | -55 up to +125 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +110 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked co-extruded adhesive lined polyolefin |
| UL / CSA approval | Crosslinked polyolefin |
| MIL-SPEC | No |
| Halogen-free | Yes |
| PU / Master Carton | 7 |
