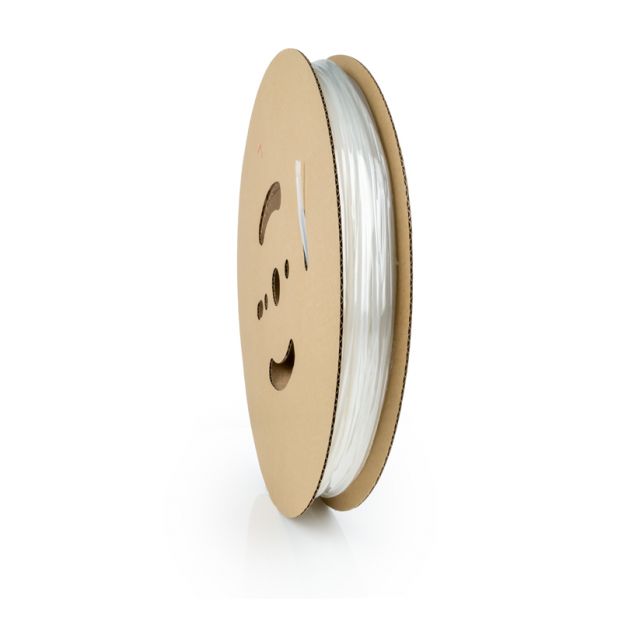

WKK - H-5R(3X) - Thin-wall heat shrink tubing - 3:1 - With adhesive - Halogen free - Operating temperature up to 125 °C - 6.0/2.0 - Transparent - On reel - 75 meters
€ 189.28 Excl. VAT
Stock (pcs.): 26
H-5(3X)-F thin-wall heat shrink tubing (shrink ratio 3:1) contains co-extruded adhesive lining, which melts when the tubing is being shrinked, for better insulation and sealing. Applications include, among others, the sealing of electrical components in the automotive and communications industry. Flame retardant.
| Art.no. | 227263191 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-5R(3X) |
| Shrink ratio | 3:1 |
| Color | Transparent |
| Length (mtr) | 75 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 6.0 |
| After recovery: inner diameter in mm (max.) | 2.0 |
| After recovery: wall thickness in mm (min.) | 1.2 |
| Packaging type | On a reel |
| Flame retardant | ASTM D2671 procedure B |
| Self-extinguishing | Yes |
| With adhesive | Yes |
| Operating temperature (°C) | -55 up to +125 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +110 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked co-extruded adhesive lined polyolefin |
| MIL-SPEC | No |
| Halogen-free | Yes |
| PU / Master Carton | 6 |
