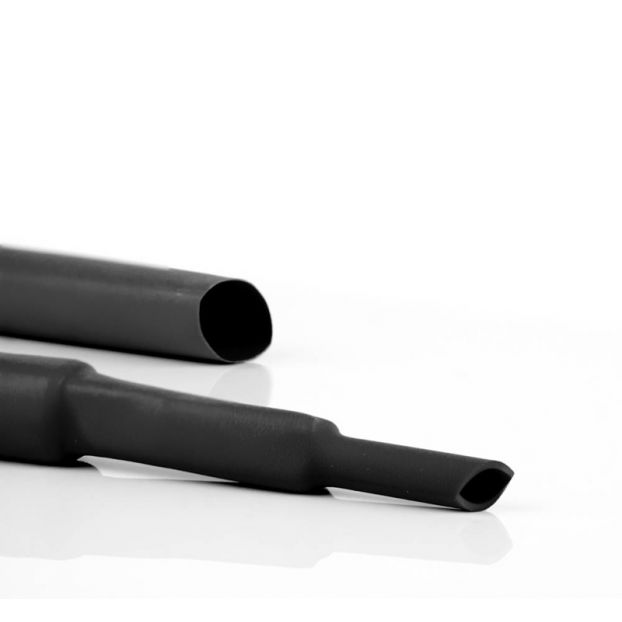

WKK - H-5(4X)-F - Thin-wall heat shrink tubing - 4:1 - With adhesive - Operating temperature up to 125 °C

Starting at € 2.76 Excl. VAT

H-5(4X)-F thin-wall heat shrink tubing (shrink ratio 4:1) contains co-extruded adhesive lining, which melts when the tubing is being shrinked, for better insulation and sealing. Applications include, among others, the sealing of electrical components in the automotive and communications industry. Flame retardant.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Length (mtr)

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	PU / Master Carton	Price excl. VAT	Stock (pcs.)
222313301	150	4.0	1.0	1	On a reel	6	€ 336.17 Excl. VAT	94
222323101	75	6.0	1.5	1	On a reel	6	€ 271.61 Excl. VAT	31
222333101	75	8.0	2.0	1	On a reel	4	€ 361.73 Excl. VAT	104
222342801	50	12.0	3.0	1.6	On a reel	4	€ 307.36 Excl. VAT	223
222352501	30	16.0	4.0	1.6	On a reel	5	€ 228.07 Excl. VAT	390
222372501	30	19.0	4.5	2.15	On a reel		€ 411.91 Excl. VAT	60
222382501	30	24.0	6.0	2.4	On a reel	6	€ 428.64 Excl. VAT	209
2223112501	30	32.0	8.0	2.4	On a reel	5	€ 550.24 Excl. VAT	77
2223142501	30	52.0	13.0	2.4	On a reel	4	€ 1,059.25 Excl. VAT	6
222311501	1.22	4.0	1.0	1	Length piece	1800	€ 2.76 Excl. VAT	2709
222321501	1.22	6.0	1.5	1	Length piece	800	€ 4.11 Excl. VAT	637
222331501	1.22	8.0	2.0	1	Length piece	600	€ 7.22 Excl. VAT	1224
222341501	1.22	12.0	3.0	1.6	Length piece	250	€ 8.90 Excl. VAT	750
222351501	1.22	16.0	4.0	1.6	Length piece	200	€ 9.48 Excl. VAT	328
222381501	1.22	24.0	6.0	2.4	Length piece	80	€ 17.42 Excl. VAT	Backorder
2223111501	1.22	32.0	8.0	2.4	Length piece	80	€ 22.45 Excl. VAT	621
2223141501	1.22	52.0	13.0	2.4	Length piece	60	€ 43.07 Excl. VAT	1428

More Information
Brand	WKK
Heat shrink tubing model	Thin-wall (flexible) heat shrink tubing
Heat shrink tubing type	H-5(4X)-F
Shrink ratio	4:1
Color	Black
Flame retardant	VW-1
Self-extinguishing	Yes
With adhesive	Yes
Printable	Yes
Operating temperature (°C)	-55 up to +125
Minimum shrink temperature (°C)	+70
Minimum full recovery temperature (°C)	+110
Longitudinal change	0 up to 10% max.
Material quality	Crosslinked co-extruded adhesive lined polyolefin
UL / CSA approval	UL224 & CSA, file E204071 (only black)
MIL-SPEC	Yes
UV resistant	Yes
Halogen-free	No
Master contract	240199
