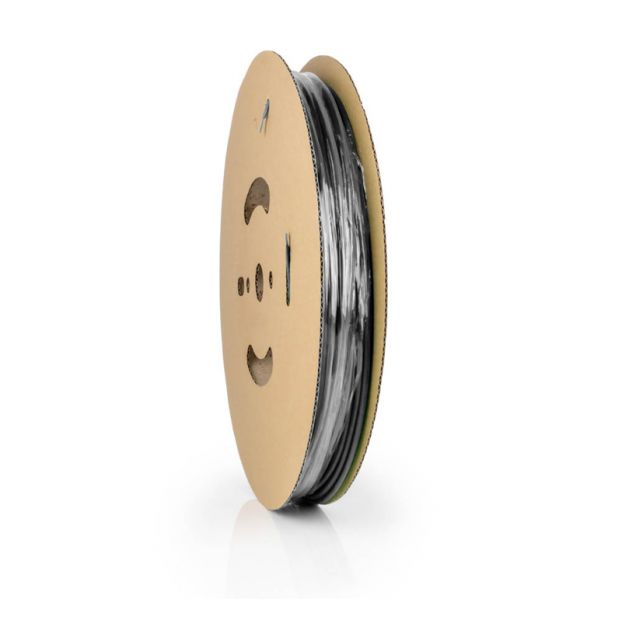

WKK - H-2R - Thin-wall heat shrink tubing - 2:1 - Operating temperature up to 135 °C - 32.0/16.0 - Black - On reel - 30 meters
€ 143.94 Excl. VAT
Stock (pcs.): 19
H-2R thin-wall heat shrink tubing is used in both the civilian and the defense industry. Often serves, just like the H-2(3X), for the protection of cables and splices due to its high insulation properties, flexibility and extraoridany resilience. Also used for electrical insulation. Flame retardant
| Art.no. | 21191142501 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-2R |
| Shrink ratio | 2:1 |
| Color | Black |
| Length (mtr) | 30 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 32.0 |
| After recovery: inner diameter in mm (max.) | 16.0 |
| After recovery: wall thickness in mm (min.) | 0.85 |
| Packaging type | On a reel |
| Flame retardant | VW-1 |
| Self-extinguishing | Yes |
| With adhesive | No |
| Operating temperature (°C) | -40 up to +135 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| UL / CSA approval | UL224 & CSA, file E204071 |
| MIL-SPEC | No |
| PU / Master Carton | 6 |
