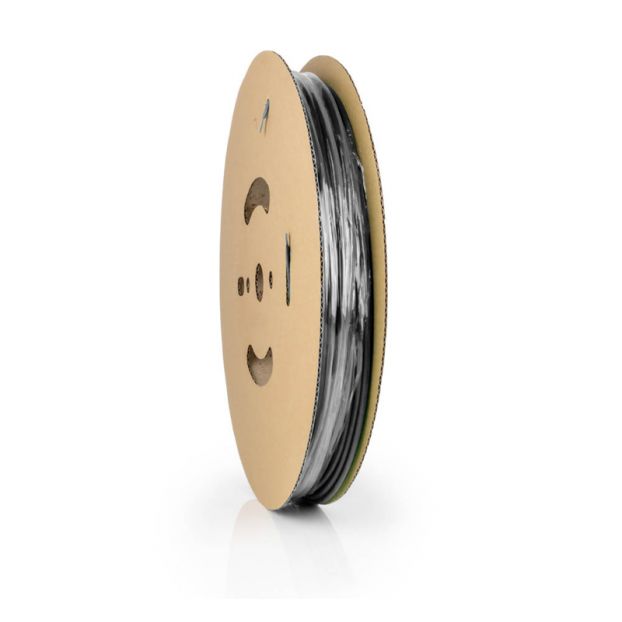

WKK - H-2R - Thin-wall heat shrink tubing - 2:1 - Operating temperature up to 135 °C - 150.0/75.0 - Black - On reel - 15 meters
€ 586.06 Excl. VAT
Stock (pcs.): 7
The H-2R thin-walled heat shrink tubing is used in both the civil engineering and defense sectors. Like the H-2(3X), often used for the protection of cables and splices due to its high insulation, flexibility and exceptional resilience, and is also used for electrical insulation. Flame retardant.
| Art.no. | 21191232201 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-2R |
| Shrink ratio | 2:1 |
| Color | Black |
| Length (mtr) | 15 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 150.0 |
| After recovery: inner diameter in mm (max.) | 75 |
| After recovery: wall thickness in mm (min.) | 1.3 |
| Packaging type | On a reel |
| Flame retardant | VW-1 |
| Self-extinguishing | Yes |
| Operating temperature (°C) | -55 up to +135 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +110 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| UL / CSA approval | UL224 & CSA, file E204071 |
| MIL-SPEC | No |
| PU / Master Carton | 1 |
