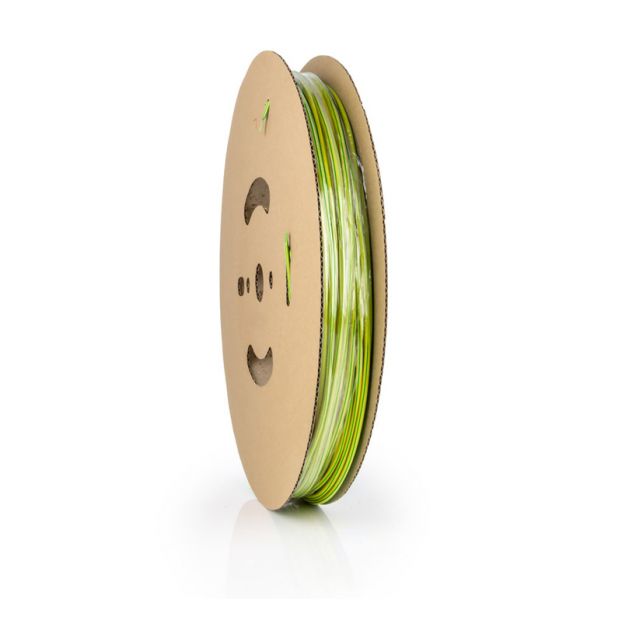

WKK - H-2F(Y/G) - Thin-wall heat shrink tubing - 3:1 - Yellow/Green - Operating temperature up to 135 °C - 24.0/ 8.0 - On a reel - 30 meters
€ 302.85 Excl. VAT
Stock (pcs.): 16
The H-2F(Y/G) is striped in yellow and green by default, and is therefore perfect for use on grounding cables. Excellent physical, chemical and electrical properties. Free from environmentally polluting raw materials. Mostly suited for use on unusual shapes, due to its 3:1 shrink ratio. Flame retardant.
| Art.no. | 21921625101 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-2F(Y/G) |
| Shrink ratio | 3:1 |
| Color | Yellow / Green |
| Length (mtr) | 30 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 24.0 |
| After recovery: inner diameter in mm (max.) | 8.0 |
| After recovery: wall thickness in mm (min.) | 1 |
| Packaging type | On a reel |
| Flame retardant | VW-1 |
| Self-extinguishing | Yes |
| With adhesive | No |
| Printable | Yes |
| Operating temperature (°C) | -55 up to +135 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +100 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| UL / CSA approval | UL224 & CSA, file E204071 |
| MIL-SPEC | Yes |
| UV resistant | No |
| Halogen-free | No |
| Master contract | 240199 |
| PU / Master Carton | 8 |
