WKK - H-2F(4X) - Thin-wall heat shrink tubing - 4:1 - Operating temperature up to 135 °C

Starting at € 20.42 Excl. VAT

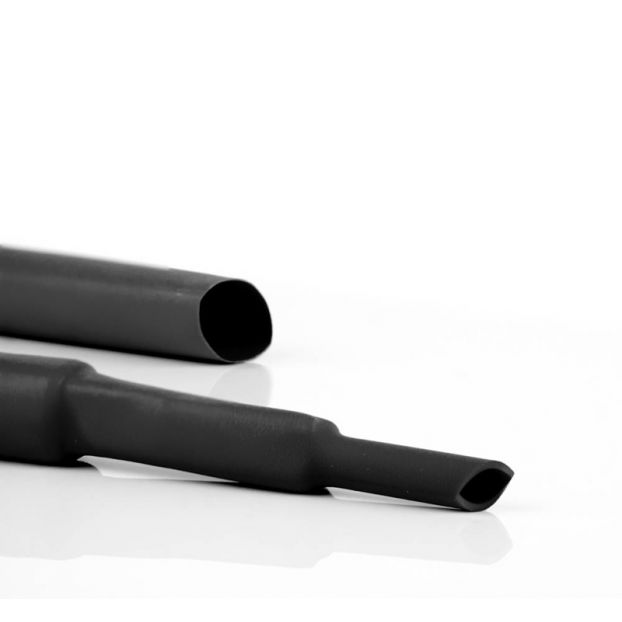

H-2F(4X) thin-wall heat shrink tubing is often used, just like the H-2F, in both the civilian and the defense industry. Often serves, just like the H-2(3X), for the protection of cables and splices due to its high insulation properties, flexibility and extraoridany resilience. Also used for electrical insulation. Flame retardant.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	PU / Master Carton	Price excl. VAT	Stock (pcs.)
216371501	1.22	19.1	4.6	1.7	Length piece	300	€ 20.42 Excl. VAT	149
216391501	1.22	25.4	7.0	1.7	Length piece	250	€ 24.44 Excl. VAT	585
2163121501	1.22	38.1	9.5	1.7	Length piece	200	€ 31.51 Excl. VAT	448
2163131501	1.22	50.8	14.0	1.7	Length piece	200	€ 49.46 Excl. VAT	158
2163151501	1.22	76.2	21.3	1.7	Length piece	100	€ 85.93 Excl. VAT	92
2163161501	1.22	102.0	26.7	1.7	Length piece	80	€ 108.48 Excl. VAT	29

More Information
Brand	WKK
Heat shrink tubing model	Thin-wall (flexible) heat shrink tubing
Heat shrink tubing type	H-2F(4X)
Shrink ratio	4:1
Color	Black
Flame retardant	VW-1
Self-extinguishing	Yes (transparent not flame retardant)
With adhesive	No
Printable	Yes
Operating temperature (°C)	-55 up to +135
Minimum shrink temperature (°C)	+70
Minimum full recovery temperature (°C)	+100
Longitudinal change	0 up to 10% max.
Material quality	Crosslinked polyolefin
UL / CSA approval	UL224 & CSA, file E204071
MIL-SPEC	Yes
UV resistant	Yes
Halogen-free	No
Master contract	240199
