WKK - H-2F(4X) - Thin-wall heat shrink tubing - 4:1 - Operating temperature up to 135 °C - 76.2/ 21.3 - Black - Length piece - 1.22 meters
€ 85.93 Excl. VAT
Stock (pcs.): 92

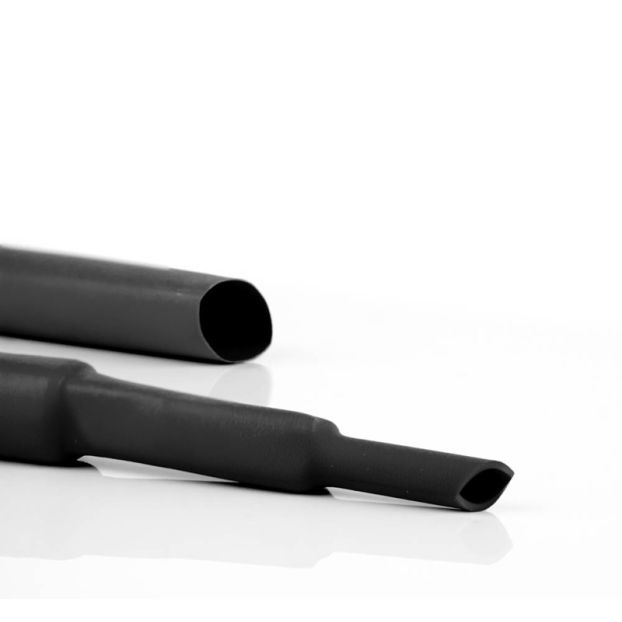

H-2F(4X) thin-wall heat shrink tubing is often used, just like the H-2F, in both the civilian and the defense industry. Often serves, just like the H-2(3X), for the protection of cables and splices due to its high insulation properties, flexibility and extraoridany resilience. Also used for electrical insulation. Flame retardant.
| Art.no. | 2163151501 |
|---|---|
| Brand | WKK |
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-2F(4X) |
| Shrink ratio | 4:1 |
| Color | Black |
| Length (mtr) | 1.22 |
| Shape | Flat |
| As supplied: inner diameter in mm (min.) | 76.2 |
| After recovery: inner diameter in mm (max.) | 21.3 |
| After recovery: wall thickness in mm (min.) | 1.7 |
| Packaging type | Length piece |
| Flame retardant | VW-1 |
| Self-extinguishing | Yes |
| With adhesive | No |
| Printable | Yes |
| Operating temperature (°C) | -55 up to +135 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +100 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| UL / CSA approval | UL224 & CSA, file E204071 |
| MIL-SPEC | Yes |
| UV resistant | Yes |
| Halogen-free | No |
| Master contract | 240199 |
| PU / Master Carton | 100 |
