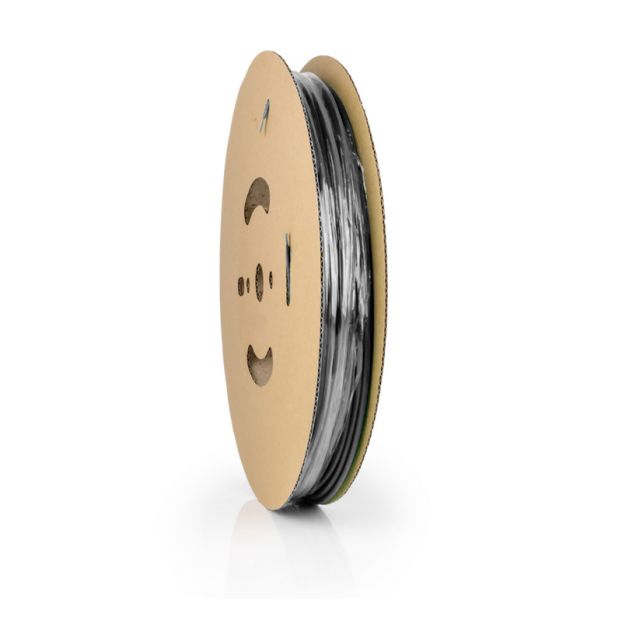

WKK - H-200E - Viton® - Thin-wall heat shrink tubing - 2:1 - Operating temperature up to 200 °C - Resistant to chemicals - 12.7/ 6.4 - Black - On a reel - 30 meters

€ 1,188.74 Excl. VAT

Stock (pcs.): 3

H-200E thin-wall heat shrink tubing is made of fluoroelastomer (Viton®), for superior impact-, wear- and cut resistance. Excellent for applications where a high resistance to corrosive liquids, fuels, acids, solvents and lubricants is required. Flame retardant. Shrink ratio 2:1.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information
Art.no.	232192501
Brand	WKK
Heat shrink tubing model	Thin-wall (flexible) heat shrink tubing
Heat shrink tubing type	H-200E
Shrink ratio	2:1
Color	Black
Length (mtr)	30
Shape	Flat
As supplied: inner diameter in mm (min.)	12.7
After recovery: inner diameter in mm (max.)	6.4
After recovery: wall thickness in mm (min.)	1.1
Packaging type	On a reel
Flame retardant	VW-1
Self-extinguishing	Self-extinguishing in 30 seconds
With adhesive	No
Printable	Yes
Operating temperature (°C)	-55 up to +200
Minimum full recovery temperature (°C)	+175
Longitudinal change	0 up to 10% max.
Material quality	Crosslinked fluoroelastomer
UL / CSA approval	file E249362 (only UL, no CSA)
MIL-SPEC	Yes
UV resistant	Yes
Halogen-free	No
Properties	Superior abrasion resistance / Flame retardant and self-extinguishing in 30 seconds / High temperature resistance / Excellent resistance to aggressive chemicals and solvents
PU / Master Carton	5
