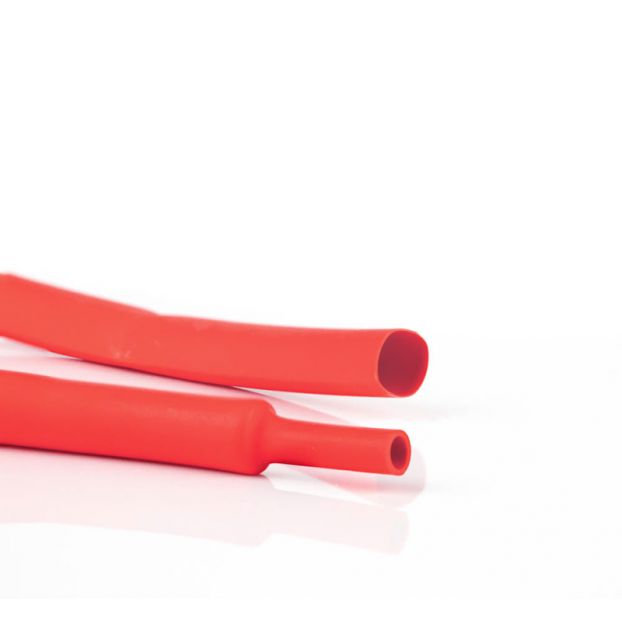

WKK - H-2(Z) - Thin-wall heat shrink tubing - 2:1 - Operating temperature up to 125 °C - 19.0/ 9.5 - Red - Length piece - 1 meters

€ 4.01 Excl. VAT

Stock (pcs.): 173

The H-2(Z) thin-wall heat shrink tubing is the most used heat shrink tubing, and is used for a wide range of applications. The low shrink temperature, the flexibility of this tube and the mechanical strength make that the H-2(Z) is often used in the communications, electronics and automotive industry. Flame retardant.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information
Art.no.	2111111421
Brand	WKK
Heat shrink tubing model	Thin-wall (flexible) heat shrink tubing
Heat shrink tubing type	H-2(Z)
Shrink ratio	2:1
Color	Red
Length (mtr)	1
Shape	Flat
As supplied: inner diameter in mm (min.)	19.0
After recovery: inner diameter in mm (max.)	9.5
After recovery: wall thickness in mm (min.)	0.8
Packaging type	Length piece
Flame retardant	VW-1
Self-extinguishing	Yes
With adhesive	No
Printable	Yes
Operating temperature (°C)	-55 up to +125
Minimum shrink temperature (°C)	+70
Minimum full recovery temperature (°C)	+100
Longitudinal change	0 up to 10% max.
Material quality	Crosslinked polyolefin
UL / CSA approval	UL224 & CSA, file E204071
MIL-SPEC	No
UV resistant	No
Halogen-free	No
Master contract	240199
PU / Master Carton	300
