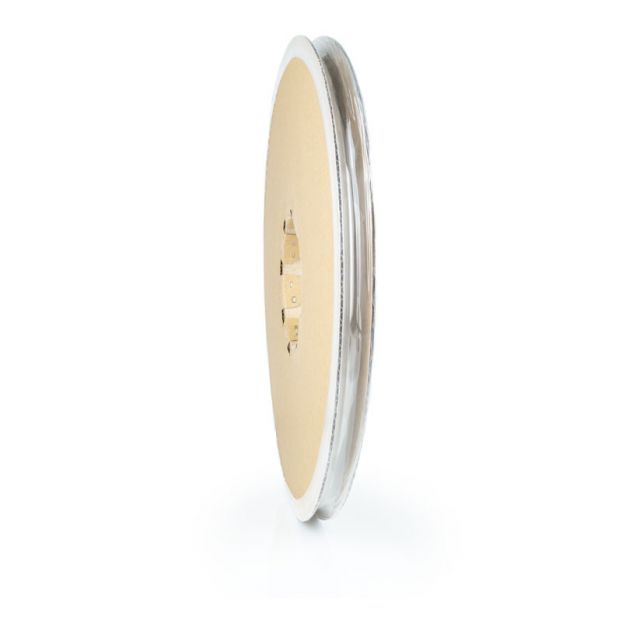

WKK - H-2(Z) 2PF - Thin-wall heat shrink tubing - 2:1 - Printable - Operating temperature up to 125 °C
The H-2(Z) 2PF thin-wall heat shrink tubing has the same properties as the H-2(Z), but is also printable. This heat shrink tube has a shrink ratio of 2:1. The low shrink temperature, the flexibility of this tube and the mechanical strength make that the H-2(Z) is often used in the communications, electronics and automotive industry. Flame retardant.
| Brand | WKK |
|---|---|
| Heat shrink tubing model | Thin-wall (flexible) heat shrink tubing |
| Heat shrink tubing type | H-2(Z) 2PF |
| Shrink ratio | 2:1 |
| Flame retardant | VW-1 |
| Self-extinguishing | Yes |
| With adhesive | No |
| Printable | Yes |
| Operating temperature (°C) | -55 up to +125 |
| Minimum shrink temperature (°C) | +70 |
| Minimum full recovery temperature (°C) | +100 |
| Longitudinal change | 0 up to 10% max. |
| Material quality | Crosslinked polyolefin |
| UL / CSA approval | UL224 & CSA, file E204071 |
| MIL-SPEC | No |
| UV resistant | Yes |
| Halogen-free | No |
| Master contract | 240199 |
