WKK - H-175K - Kynar® - Thin-wall heat shrink tubing - 2:1 - Operating temperature up to 175 °C - Resistant to chemicals

Starting at € 13.88 Excl. VAT

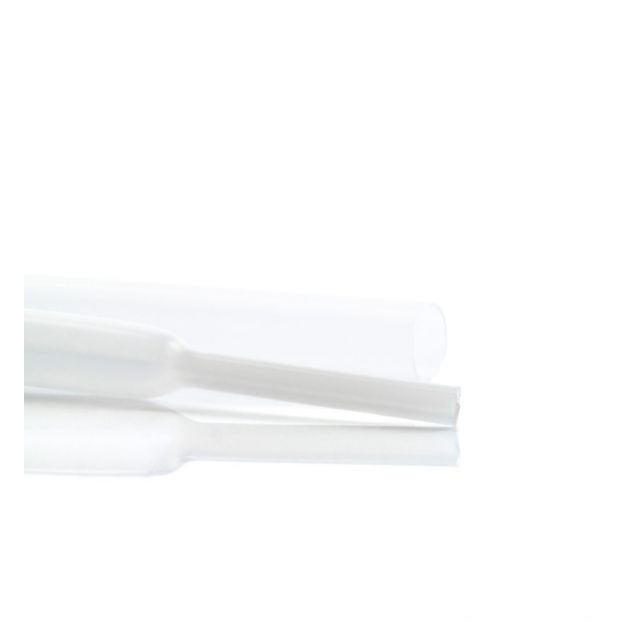

H-175K thin-wall heat shrink tubing is a PVDF shrink tube, made of Kynar®, for applications where resistance against high temperatures, excellent wear and cut resistance and resistance against chemicals and solvents are necessary. For this reason, the H-175K is a reliable option for the protection of cables, terminals and connections. Flame retardant. Shrink ratio 2:1.

View versions and order

Downloads

Flowchart - Selecting the correct heat shrink tubing type

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Length (mtr)

As supplied: inner diameter in mm (min.)

After recovery: inner diameter in mm (max.)

After recovery: wall thickness in mm (min.)

PU / Master Carton

Grouped product items
Art.no.	Length (mtr)	As supplied: inner diameter in mm (min.)	After recovery: inner diameter in mm (max.)	After recovery: wall thickness in mm (min.)	Packaging type	Price excl. VAT	Stock (pcs.)
231113391	150	1.2	0.6	0.2	On a reel	€ 435.24 Excl. VAT	7
231123391	150	1.6	0.8	0.2	On a reel	€ 435.24 Excl. VAT	11
231133391	150	2.4	1.2	0.23	On a reel	€ 572.09 Excl. VAT	3
231143391	150	3.2	1.6	0.23	On a reel	€ 694.68 Excl. VAT	23
231153191	75	4.8	2.4	0.23	On a reel	€ 478.14 Excl. VAT	21
231163191	75	6.4	3.2	0.28	On a reel	€ 579.35 Excl. VAT	25
231181591	1.22	9.5	4.8	0.28	Length piece	€ 13.88 Excl. VAT	50
231191591	1.22	12.7	6.4	0.28	Length piece	€ 18.84 Excl. VAT	396
2311111591	1.22	19.1	9.5	0.36	Length piece	€ 31.45 Excl. VAT	162

More Information
Brand	WKK
Heat shrink tubing model	Thin-wall (flexible) heat shrink tubing
Heat shrink tubing type	H-175K
Shrink ratio	2:1
Color	Transparent
Flame retardant	VW-1
Self-extinguishing	Self-extinguishing in 30 seconds
With adhesive	No
Printable	Yes
Operating temperature (°C)	-55 up to +175
Minimum full recovery temperature (°C)	+175
Longitudinal change	0 up to 10% max.
Material quality	Crosslinked PVDF
UL / CSA approval	file E249362 (only UL, no CSA)
MIL-SPEC	Yes
UV resistant	No
Halogen-free	No
