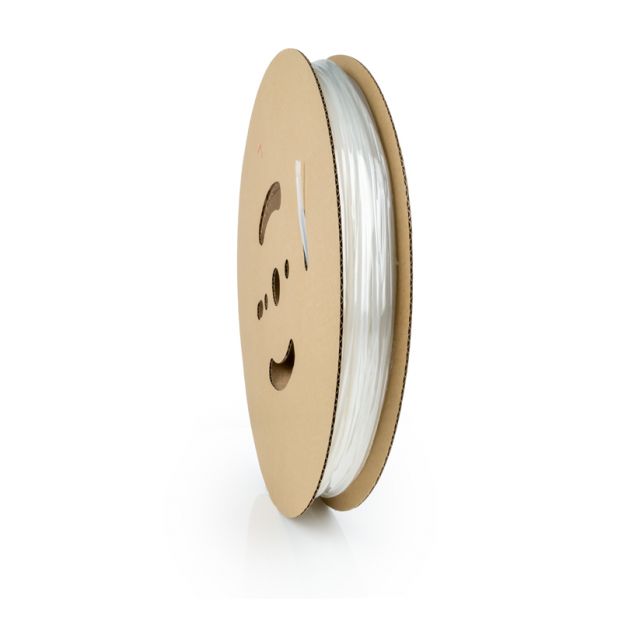

WKK - H-175K - Kynar® - Thin-wall heat shrink tubing - 2:1 - Operating temperature up to 175 °C - Resistant to chemicals - 3.2/ 1.6 - Transparent - On a reel - 150 meters

€ 694.68 Excl. VAT

Stock (pcs.): 13

H-175K thin-wall heat shrink tubing is a PVDF shrink tube, made of Kynar®), for applications where resistance against high temperatures, excellent wear and cut resistance and resistance against chemicals and solvents are necessary. For this reason, the H-175K is a reliable option for the protection of cables, terminals and connections. Flame retardant. Shrink ratio 2:1.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information
Art.no.	231143391
Brand	WKK
Heat shrink tubing model	Thin-wall (flexible) heat shrink tubing
Heat shrink tubing type	H-175K
Shrink ratio	2:1
Color	Transparent
Length (mtr)	150
Shape	Round
As supplied: inner diameter in mm (min.)	3.2
After recovery: inner diameter in mm (max.)	1.6
After recovery: wall thickness in mm (min.)	0.23
Packaging type	On a reel
Flame retardant	VW-1
Self-extinguishing	Self-extinguishing in 30 seconds
With adhesive	No
Printable	Yes
Operating temperature (°C)	-55 up to +175
Minimum full recovery temperature (°C)	+175
Longitudinal change	0 up to 10% max.
Material quality	Crosslinked PVDF
UL / CSA approval	file E249362 (only UL, no CSA)
MIL-SPEC	Yes
UV resistant	No
Halogen-free	No
Properties	Superior mechanical and abrasion resistance / Highly flame retardant and self-extinguishing in 30 seconds / High temperature resistance / Excellent chemical and solvent resistance
PU / Master Carton	8
