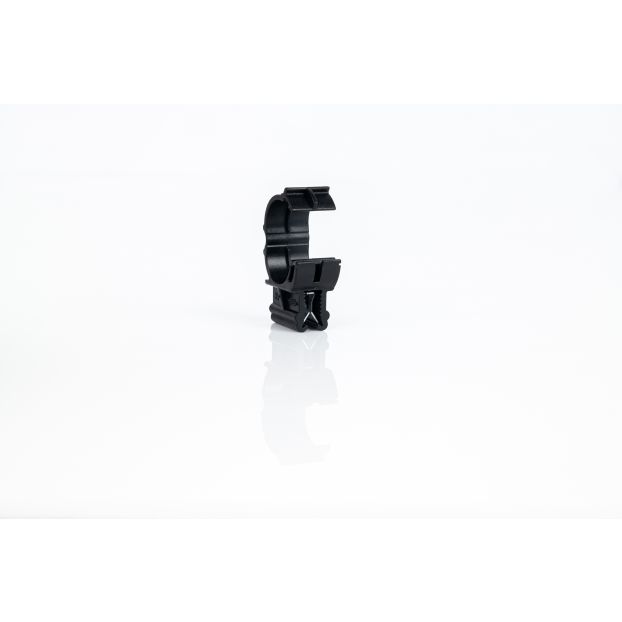

WKK - Edge clips for corrugated tubing

These edge clips for corrugated tubing are the solution for guiding corrugated tubing on a metal or plastic profile. The outer diameter of the corrugated tube, the profile thickness and the way in which the cable is attached to the clip are of importance when choosing the right edge clip. Available in 15 versions.

View versions and order

Downloads

Cable management solutions for the solar industry

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Fixation clip type

Profile thickness (in mm)

Inner size (in Nennweite)

Position of corrugated tube in relation to profile

Direction of corrugated tube in relation to profile

Grouped product items
Art.no.	Fixation clip type	Profile thickness (in mm)	Inner size (in Nennweite)	Position of corrugated tube in relation to profile	Direction of corrugated tube in relation to profile	PU (pcs.)	PU / Master Carton	Price excl. VAT	Stock (pcs.)
621241071	KC24	0.7 - 3.0	4.5	Top side	Longitudinal direction of the profile	100	70	Call for price	10
621211071	KC21	0.7 - 3.0	7.5	Top side	Longitudinal direction of the profile	100	90	Call for price	80
621321071	KC32	0.7 - 3.0	17	Top side	Longitudinal direction of the profile	100	30	Call for price	Backorder
621301071	KC30	3.0 - 6.0	4.5	Top side	Longitudinal direction of the profile	100	40	Call for price	Backorder
621121071	KC12	3.0 - 6.0	13	Top side	Longitudinal direction of the profile	100	35	Call for price	Backorder
621231071	KC23	0.7 - 3.0	4.5	Top side	Right-angled on the profile	100	90	Call for price	75
621221071	KC22	0.7 - 3.0	10	Top side	Right-angled on the profile	100	70	Call for price	3
621311071	KC31	0.7 - 3.0	13	Top side	Right-angled on the profile	100	40	Call for price	15
621351071	KC35	0.7 - 3.0	2x 10	Side	Longitudinal direction of the profile	100	40	Call for price	34
621251071	KC25	0.7 - 3.0	4.5	Side	Longitudinal direction of the profile	100	90	Call for price	37
621261071	KC26	0.7 - 3.0	10	Side	Longitudinal direction of the profile	100	35	Call for price	82
621361071	KC36	0.7 - 3.0	13	Side	Longitudinal direction of the profile	100	50	Call for price	176
621281071	KC28	3.0 - 6.0	4.5	Side	Longitudinal direction of the profile	100	40	Call for price	11
621291071	KC29	3.0 - 6.0	7.5	Side	Longitudinal direction of the profile	100	40	Call for price	150
621271071	KC27	3.0 - 6.0	10	Side	Longitudinal direction of the profile	100	40	Call for price	Backorder

More Information
Brand	WKK
Metal clamp material	Spring steel, hardened coated surface to ensure protection against corrosion
Material plastic clip	Polyamide 6.6 HS
Color	Black
Impact resistant	Yes
Heat resistant	Yes
Weatherproof	Yes
Temperature range (°C)	-40 up to +120
