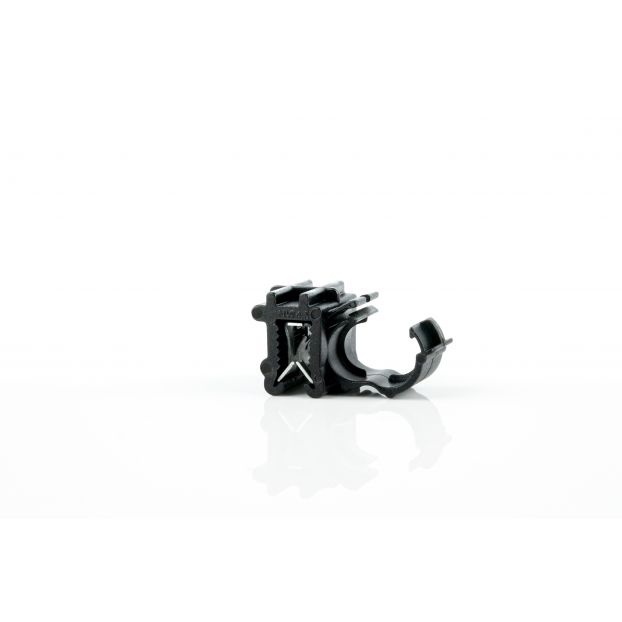

WKK - Edge clips for corrugated tubing - KC25 - 100 pieces
€ 71.19 Excl. VAT
Stock (pcs.): 37
These edge clips for corrugated tubing are the solution for guiding corrugated tubing on a metal or plastic profile. The outer diameter of the corrugated tube, the profile thickness and the way in which the cable is attached to the clip are of importance when choosing the right edge clip. Available in 15 versions.
| Art.no. | 621251071 |
|---|---|
| Brand | WKK |
| Fixation clip type | KC25 |
| Profile thickness (in mm) | 0.7 - 3.0 |
| Inner size (in Nennweite) | 4.5 |
| Inner size (in mm) | 7,1 |
| Direction of corrugated tube in relation to profile | Longitudinal direction of the profile |
| Metal clamp material | Spring steel, hardened coated surface to ensure protection against corrosion |
| Material plastic clip | Polyamide 6.6 HS |
| Color | Black |
| Impact resistant | Yes |
| Heat resistant | Yes |
| Weatherproof | Yes |
| Temperature range (°C) | -40 up to +120 |
| PU (pcs.) | 100 |
| PU / Master Carton | 90 |
