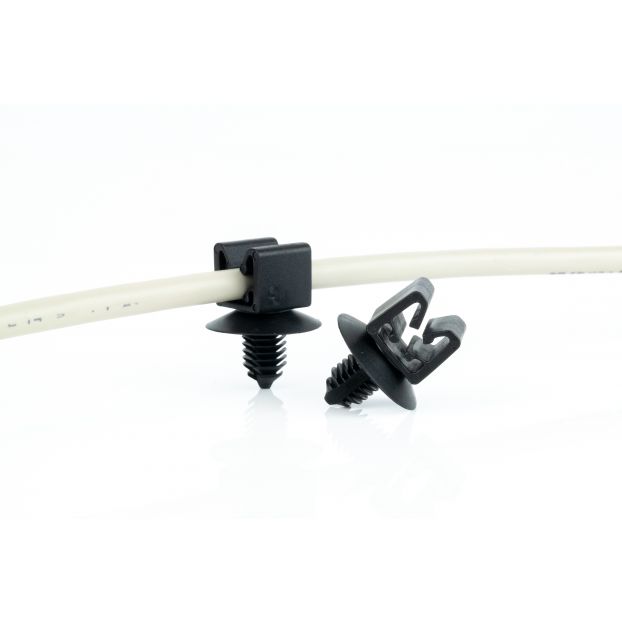

WKK - Clips with fir tree & with arrowhead

Clips with fir tree and clips with arrowhead are specially designed for mounted the clip in a drill hole, in order to then attach cables or cable ties. Available in 6 versions.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Fixation clip type

Hole diameter (mm)

Sheet thickness (in mm)

Cable diameter (mm)

Supplied with cable tie

Grouped product items
Art.no.	Fixation clip type	Hole diameter (mm)	Sheet thickness (in mm)	Cable diameter (mm)	Supplied with cable tie	Clip type	PU (pcs.)	PU / Master Carton	Price excl. VAT	Stock (pcs.)
63211071	LFC 1	6.3 - 7.0	0.5 - 6.0	1.0 - 45.0	No	Fir tree	100	160	Request a quote	1034
63221071	LFC 2	6.3 - 7.0	0.5 - 3.0	1.0 - 45.0	No	Fir tree	100	160	Request a quote	230
63311071	LC 1	6.5 +/- 0.2	0.7 - 2.0	1.0 - 45.0	No	Arrowhead	100	160	Request a quote	82
63321071	LC 2	6.5 +/- 0.2	2.0 - 3.5	1.0 - 45.0	No	Arrowhead	100	160	Request a quote	436
63331071	LC 3	6.5 - 7.0	1.8 - 2.8	1.0 - 45.0	No	Arrowhead	100	40	Request a quote	26
63261071	LFC 6	6.3 - 7.0	0.6 - 1.2	4.5 - 6.0	No	Fir tree	100		Request a quote	3
632110101	LFC 1	6.3 - 7.0	0.5 - 6.0	1.0 - 45.0	No	Fir tree	500	32	Request a quote	102
63212071	LFC 1	6.3 - 7.0	0.5 - 6.0	1.0 - 45.0	Yes	Fir tree	100	40	Request a quote	1352
63222071	LFC 2	6.3 - 7.0	0.5 - 3.0	1.0 - 45.0	Yes	Fir tree	100	40	Request a quote	107
63312071	LC 1	6.5 +/- 0.2	0.7 - 2.0	1.0 - 45.0	Yes	Arrowhead	100	40	Request a quote	Backorder
63322071	LC 2	6.5 +/- 0.2	2.0 - 3.5	1.0 - 45.0	Yes	Arrowhead	100	40	Request a quote	2
63332071	LC 3	6.5 - 7.0	1.8 - 2.8	1.0 - 45.0	Yes	Arrowhead	100	40	Request a quote	Backorder
632120101	LFC 1	6.3 - 7.0	0.5 - 6.0	1.0 - 45.0	Yes	Fir tree	500	8	Request a quote	326
