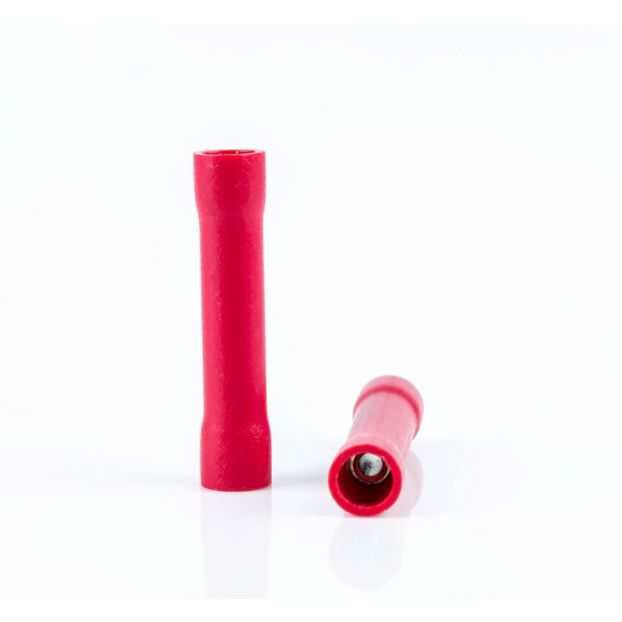

WKK - Butt connectors - Insulated - 0,5 ~ 1,5mm - Red - 100 pieces

€  10.52 Excl. VAT
Stock (pcs.): 227
Insulated butt connectors for connecting wires. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.
More Information
Art.no.4723201271
BrandWKK
Crimp terminal typeButt connectors
Maximum electrical voltage600 V max.
Maximum temperature (°C)75
Insulation materialPVC
Connector materialCopper
Insulation colorRed
Wire range (mm²)0.5 ~ 1.5
AWG22 ~ 16
Length (mm)26
For crimp terminal typeProfile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
PU (pcs.)100
