WKK - Bullet disconnectors - Insulated - Female

Starting at € 10.41 Excl. VAT

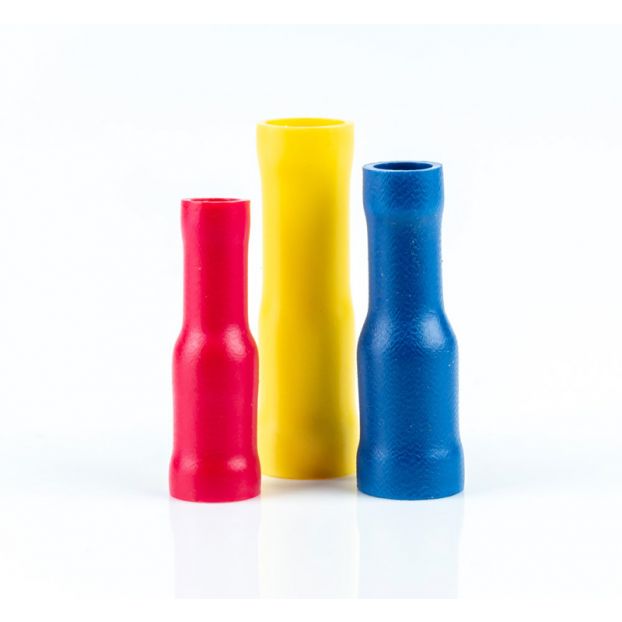

These insulated bullet disconnectors, female, are often used to connect cables / wires. Also available without sleeve and with 'easy entry'. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

With sleeve

Wire range (mm²)

AWG

Connector diameter (mm)

Grouped product items
Art.no.	With sleeve	Insulation color	Wire range (mm²)	AWG	Connector diameter (mm)	PU (pcs.)	Price excl. VAT	Stock (pcs.)
4101341271	Yes	Red	0.5 ~ 1.5	22 ~ 16	4	100	€ 13.01 Excl. VAT	18
4101442671	Yes	Blue	1.5 ~ 2.5	16 ~ 14	4	100	€ 13.01 Excl. VAT	5
4101462671	Yes	Blue	1.5 ~ 2.5	16 ~ 14	5	100	€ 14.19 Excl. VAT	2
4101663471	Yes	Yellow	4.0 ~ 6.0	12 ~ 10	5	100	€ 20.67 Excl. VAT	10
4102341271	No	Red	0.5 ~ 1.5	22 ~ 16	4	100	€ 10.41 Excl. VAT	11
4102442671	No	Blue	1.5 ~ 2.5	16 ~ 14	4	100	€ 15.59 Excl. VAT	Backorder
4102462671	No	Blue	1.5 ~ 2.5	16 ~ 14	5	100	€ 16.92 Excl. VAT	Backorder
4102663471	No	Yellow	4.0 ~ 6.0	12 ~ 10	5	100	€ 18.93 Excl. VAT	Backorder

More Information
Brand	WKK
Crimp terminal type	Bullet disconnectors
Maximum electrical voltage	300 V max.
Maximum temperature (°C)	75
Insulation material	PVC
Connector material	Brass
