WKK - Bullet disconnector - Insulated - Male

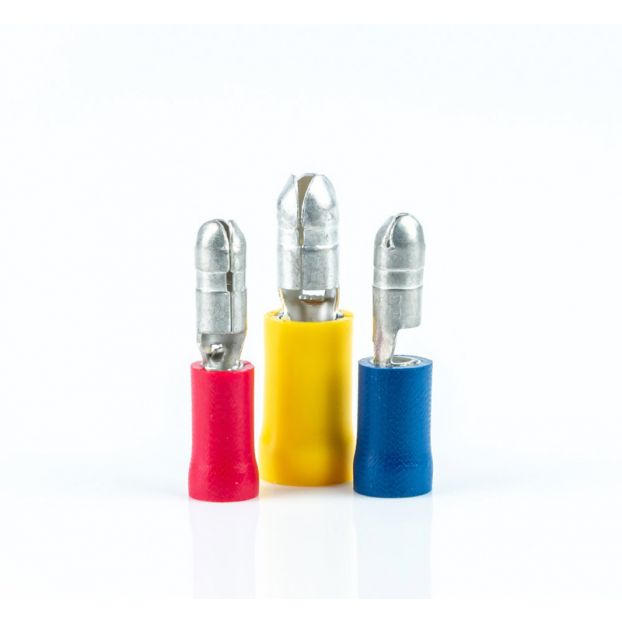

Insulated bullet disconnector, male, for easily connecting cables / wires. Also available without sleeve and with 'easy entry'. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

With sleeve

Wire range (mm²)

AWG

Connector diameter (mm)

Grouped product items
Art.no.	With sleeve	Insulation color	Wire range (mm²)	AWG	Connector diameter (mm)	PU (pcs.)	Price excl. VAT	Stock (pcs.)
4111341271	Yes	Red	0.5 ~ 1.5	22 ~ 16	4	100	Call for price	4
4111442671	Yes	Blue	1.5 ~ 2.5	16 ~ 14	4	100	Call for price	8
4111462671	Yes	Blue	1.5 ~ 2.5	16 ~ 14	5	100	Call for price	Backorder
4111663471	Yes	Yellow	4.0 ~ 6.0	12 ~ 10	5	100	Call for price	11
4112341271	No	Red	0.5 ~ 1.5	22 ~ 16	4	100	Call for price	19
4112442671	No	Blue	1.5 ~ 2.5	16 ~ 14	4	100	Call for price	Backorder
4112462671	No	Blue	1.5 ~ 2.5	16 ~ 14	5	100	Call for price	Backorder
4112663471	No	Yellow	4.0 ~ 6.0	12 ~ 10	5	100	Call for price	28

More Information
Brand	WKK
Crimp terminal type	Bullet disconnectors
Maximum electrical voltage	300 V max.
Maximum temperature (°C)	75
Insulation material	PVC
Connector material	Brass
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
