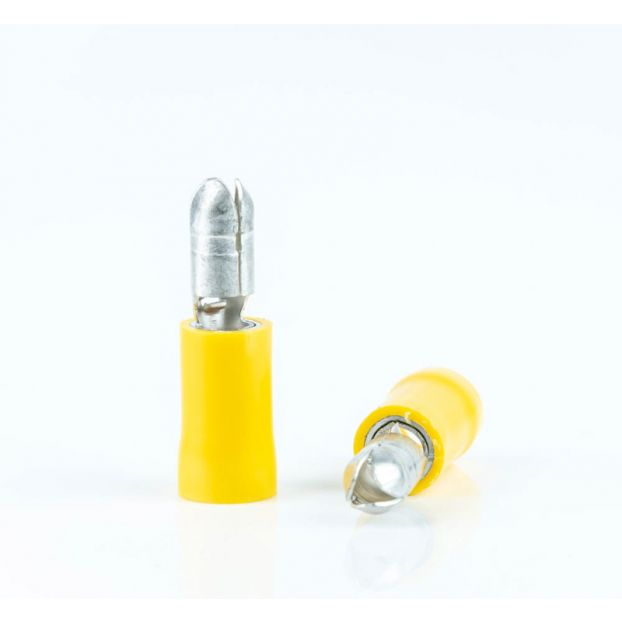

WKK - Bullet disconnector - Insulated - Male - mm - Yellow - 100 pieces
€ 19.40 Excl. VAT
Stock (pcs.): 11
Insulated bullet disconnector, male, for easily connecting cables / wires. Also available without sleeve and with 'easy entry'. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.
| Art.no. | 4111663471 |
|---|---|
| Brand | WKK |
| Crimp terminal type | Bullet disconnectors |
| Maximum electrical voltage | 300 V max. |
| Maximum temperature (°C) | 75 |
| Insulation material | PVC |
| Connector material | Brass |
| With sleeve | Yes |
| Insulation color | Yellow |
| Wire range (mm²) | 4.0 ~ 6.0 |
| AWG | 12 ~ 10 |
| Connector diameter (mm) | 5 |
| For crimp terminal type | Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234 |
| PU (pcs.) | 100 |
