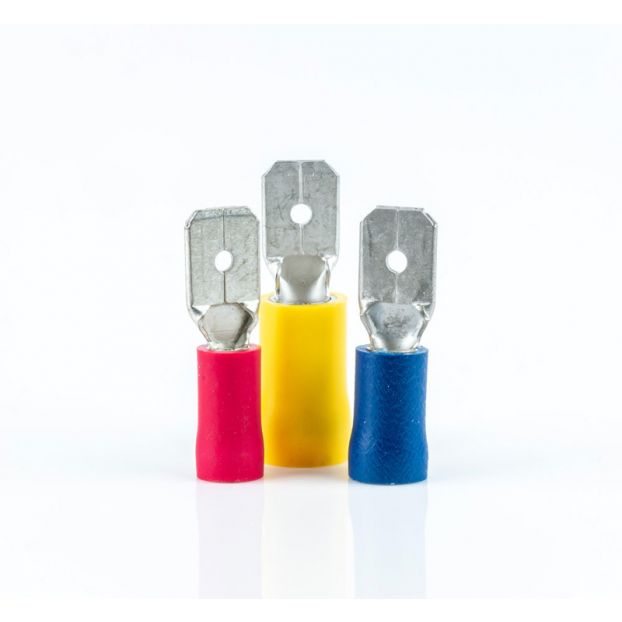

WKK - Blade connector - Insulated - Male

Insulated blade connector, male. Available in multiple tab sizes. Without sleeve and also available with 'easy entry'. In three colors, each of which corresponds with a size: Red: cable core of 0,5 ~ 1,5mm2, AWG 22 ~ 16. Blue: cable core of 1,5 ~ 2,5mm2, AWG 16 ~ 14. Yellow: cable core of 4,0 ~ 6,0mm2, AWG 12 ~ 10.

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

With sleeve

Wire range (mm²)

Tab (mm)

AWG

Grouped product items
Art.no.	With sleeve	Insulation color	Wire range (mm²)	Tab (mm)	AWG	PU (pcs.)	Price excl. VAT	Stock (pcs.)
4613271271	Yes	Red	0.5 ~ 1.5	*0.5 2.8**	22 ~ 16	100	Call for price	2
4613281271	Yes	Red	0.5 ~ 1.5	*0.8 2..8**	22 ~ 16	100	Call for price	8
4613291271	Yes	Red	0.5 ~ 1.5	*0.5 4.8**	22 ~ 16	100	Call for price	Backorder
4613301271	Yes	Red	0.5 ~ 1.5	*0.8 4.8**	22 ~ 16	100	Call for price	122
4613311271	Yes	Red	0.5 ~ 1.5	*0.8 6.4**	22 ~ 16	100	Call for price	40
4614272671	Yes	Blue	1.5 ~ 2.5	*0.5 2.8**	16 ~ 14	100	Call for price	3
4614282671	Yes	Blue	1.5 ~ 2.5	*0.8 2..8**	16 ~ 14	100	Call for price	Backorder
4614292671	Yes	Blue	1.5 ~ 2.5	*0.5 4.8**	16 ~ 14	100	Call for price	Backorder
4614302671	Yes	Blue	1.5 ~ 2.5	*0.8 4.8**	16 ~ 14	100	Call for price	19
4614312671	Yes	Blue	1.5 ~ 2.5	*0.8 6.4**	16 ~ 14	100	Call for price	72
4616313471	Yes	Yellow	4.0 ~ 6.0	*0.8 6.4**	12 ~ 10	100	Call for price	3
4623271271	No	Red	0.5 ~ 1.5	*0.5 2.8**	22 ~ 16	100	Call for price	Backorder
4623281271	No	Red	0.5 ~ 1.5	*0.8 2..8**	22 ~ 16	100	Call for price	3
4623291271	No	Red	0.5 ~ 1.5	*0.5 4.8**	22 ~ 16	100	Call for price	1
4623301271	No	Red	0.5 ~ 1.5	*0.8 4.8**	22 ~ 16	100	Call for price	8
4623311271	No	Red	0.5 ~ 1.5	*0.8 6.4**	22 ~ 16	100	Call for price	17
4624272671	No	Blue	1.5 ~ 2.5	*0.5 2.8**	16 ~ 14	100	Call for price	Backorder
4624282671	No	Blue	1.5 ~ 2.5	*0.8 2..8**	16 ~ 14	100	Call for price	18
4624292671	No	Blue	1.5 ~ 2.5	*0.5 4.8**	16 ~ 14	100	Call for price	Backorder
4624302671	No	Blue	1.5 ~ 2.5	*0.8 4.8**	16 ~ 14	100	Call for price	Backorder
4624312671	No	Blue	1.5 ~ 2.5	*0.8 6.4**	16 ~ 14	100	Call for price	8
4626313471	No	Yellow	4.0 ~ 6.0	*0.8 6.4**	12 ~ 10	100	Call for price	11

More Information
Brand	WKK
Crimp terminal type	Spade connectors
Maximum electrical voltage	300 V max.
Maximum temperature (°C)	75
Insulation material	PVC
Connector material	Brass
For crimp terminal type	Profile 1: for ferrules with & without collar, 0.5 - 16.0 mm² Profile 2: for insulated terminals from 0.5 - 6.0 mm² Profile 3: for non-insulated terminals from 0.5 - 10.0 mm², DIN 46234
