Jacob - Sealing grommets - Metric

Name: Jacob - Sealing grommets - Metric
Brand: Jacob
SKU: G502-1 grouped
Availability: InStock

Starting at € 15.19 Excl. VAT

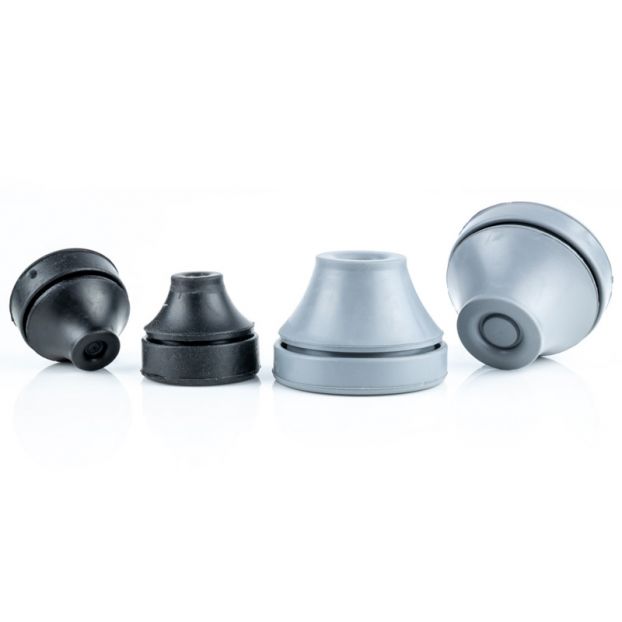

Sealing grommets with metric thread. Sealing grommets are used for securely guiding cables. These sealing grommets are made of EPDM. Available in gray (RAL 7035) silver gray and black (RAL 9005).

View versions and order

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Versions

Color

Size

Ø Hole (mm)

Wall thickness T (mm)

Cable Ø C (mm)

L1 (mm)

H (mm)

Da (mm)

Grouped product items
Art.no.	Color	Size	Ø Hole (mm)	Wall thickness T (mm)	Cable Ø C (mm)	L1 (mm)	H (mm)	Da (mm)	PU (pcs.)	PU / Master Carton	Price excl. VAT	Stock (pcs.)
G502-1012-00	Silver grey (7001)	M12	12.5	0.5 - 2	4 - 7	5.4	12.7	20	50		€ 17.38 Excl. VAT	Backorder
G502-1016-00	Silver grey (7001)	M16	16.5	1 - 4	5 - 9	10.5	18	21	50		€ 15.19 Excl. VAT	1
G502-1020-00	Silver grey (7001)	M20	20.5	1 - 4	18 - 13	12.7	20	25.5	50		€ 23.03 Excl. VAT	8
G502-1025-00	Silver grey (7001)	M25	25.5	1 - 4	11 - 17	14.5	21.6	30.5	50		€ 23.57 Excl. VAT	Backorder
G502-1032-00	Silver grey (7001)	M32	32.5	1 - 4	15 - 20	17.5	24.8	38.5	25		€ 21.44 Excl. VAT	Backorder
G502-1040-00	Silver grey (7001)	M40	40.5	1 - 4	19 - 28	20.4	30	48.5	25		€ 37.54 Excl. VAT	Backorder
G502-1050-00	Silver grey (7001)	M50	50.5	1 - 4	27 - 35	23.9	35	60.5	10		€ 19.97 Excl. VAT	Backorder
G502-1063-00	Silver grey (7001)	M63	63.5	1 - 4	34 - 45	28.9	40	73.5	5		€ 40.27 Excl. VAT	Backorder
G502-1012-01	Light grey (7035)	M12	12.5	0.5 - 2	4 - 7	5.4	12.7	20	50		€ 17.39 Excl. VAT	Backorder
G502-1016-01	Light grey (7035)	M16	16.5	1 - 4	5 - 9	10.5	18	21	50	80	€ 15.19 Excl. VAT	Backorder
G502-1020-01	Light grey (7035)	M20	20.5	1 - 4	18 - 13	12.7	20	25.5	50		€ 18.54 Excl. VAT	15
G502-1025-01	Light grey (7035)	M25	25.5	1 - 4	11 - 17	14.5	21.6	30.5	50		€ 23.57 Excl. VAT	4
G502-1032-01	Light grey (7035)	M32	32.5	1 - 4	15 - 20	17.5	24.8	38.5	25		€ 16.81 Excl. VAT	Backorder
G502-1040-01	Light grey (7035)	M40	40.5	1 - 4	19 - 28	20.4	30	48.5	25		€ 60.96 Excl. VAT	Backorder
G502-1050-01	Light grey (7035)	M50	50.5	1 - 4	27 - 35	23.9	35	60.5	10		€ 19.97 Excl. VAT	4
G502-1063-01	Light grey (7035)	M63	63.5	1 - 4	34 - 45	28.9	40	73.5	5		€ 65.91 Excl. VAT	Backorder
G502-1012-02	Black	M12	12.5	0.5 - 2	4 - 7	5.4	12.7	20	50		€ 17.38 Excl. VAT	Backorder
G502-1016-02	Black	M16	16.5	1 - 4	5 - 9	10.5	18	21	50		€ 20.61 Excl. VAT	37
G502-1020-02	Black	M20	20.5	1 - 4	18 - 13	12.7	20	25.5	50		€ 23.03 Excl. VAT	Backorder
G502-1025-02	Black	M25	25.5	1 - 4	11 - 17	14.5	21.6	30.5	50		€ 23.57 Excl. VAT	Backorder
G502-1032-02	Black	M32	32.5	1 - 4	15 - 20	17.5	24.8	38.5	25		€ 21.44 Excl. VAT	Backorder
G502-1040-02	Black	M40	40.5	1 - 4	19 - 28	20.4	30	48.5	25		€ 60.96 Excl. VAT	Backorder
G502-1050-02	Black	M50	50.5	1 - 4	27 - 35	23.9	35	60.5	10		€ 19.97 Excl. VAT	Backorder
G502-1063-02	Black	M63	63.5	1 - 4	34 - 45	28.9	40	73.5	5		€ 40.27 Excl. VAT	Backorder

More Information
Brand	Jacob
Material	Plastic
Material quality	Polyamide PA6 GF25
Height in mm	2.8
Connecting thread type	Metric (EN 60423)
Temperature range (°C)	-40 up to +110
Degree of protection (IP rating)	IP67
Test standard	EN 60670-1:2005+A1:2013
Semko report	1612391
